DSCP006 Series Spacers

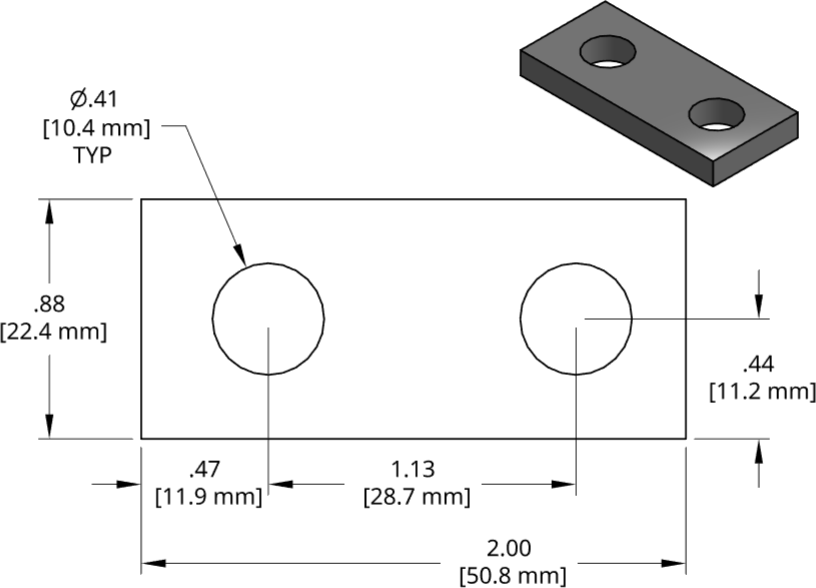

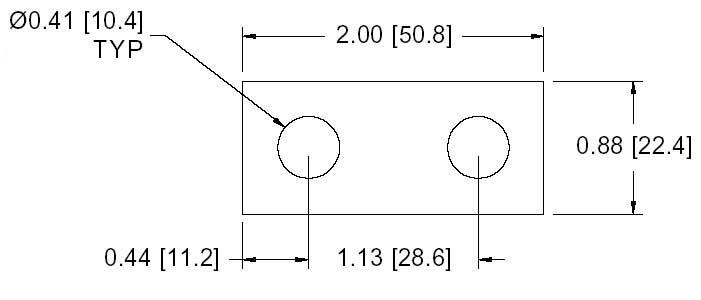

DSCP006 Series Shim Drawing


View PDF Catalog Page

DSCP006 Series Individual Spacers

Stock Code Thickness Other Part Numbers STEP Download
DSCP006-M200 2.00mm DSCP006-M200.step
DSCP006-M225 2.25mm DSCP006-M225.step
DSCP006-M250 2.50mm DSCP006-M250.step
DSCP006-M275 2.75mm DSCP006-M275.step
DSCP006-M300 3.00mm FSD 40223-51 DSCP006-M300.step
DSCP006-M325 3.25mm FSD 40223-52 DSCP006-M325.step
DSCP006-M350 3.50mm FSD 40223-53 DSCP006-M350.step
DSCP006-M375 3.75mm FSD 40223-54 DSCP006-M375.step
DSCP006-M400 4.00mm FSD 40223-55 DSCP006-M400.step
DSCP006-M425 4.25mm FSD 40223-56 DSCP006-M425.step
DSCP006-M450 4.50mm FSD 40223-57 DSCP006-M450.step
DSCP006-M475 4.75mm FSD 40223-58 DSCP006-M475.step
DSCP006-M500 5.00mm FSD 40223-59 DSCP006-M500.step
DSCP006-M525 5.25mm FSD 40223-60 DSCP006-M525.step
DSCP006-M550 5.50mm FSD 40223-61 DSCP006-M550.step
DSCP006-M575 5.75mm FSD 40223-62 DSCP006-M575.step
DSCP006-M600 6.00mm FSD 40223-63 DSCP006-M600.step
