DSCP013 Series Spacers

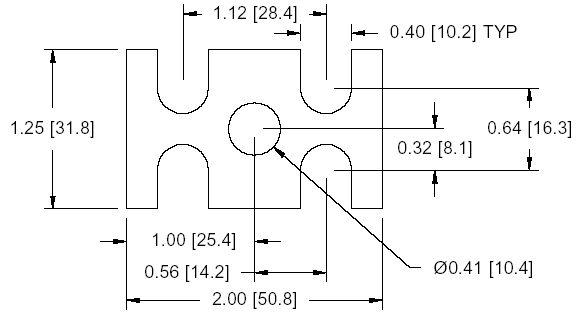

DSCP013 Series Shim Drawing


View PDF Catalog Page

DSCP013 Series Individual Spacers

Part Number Thickness Other Part Numbers
DSCP013-M200 2.00mm FSD 40230-51
DSCP013-M225 2.25mm FSD 40230-52
DSCP013-M250 2.50mm FSD 40230-53
DSCP013-M275 2.75mm FSD 40230-54
DSCP013-M300 3.00mm FSD 40230-55
DSCP013-M325 3.25mm FSD 40230-56
DSCP013-M350 3.50mm FSD 40230-57
DSCP013-M375 3.75mm FSD 40230-58
DSCP013-M400 4.00mm FSD 40230-59
DSCP013-M425 4.25mm FSD 40230-60
DSCP013-M450 4.50mm FSD 40230-61
DSCP013-M475 4.75mm FSD 40230-62
DSCP013-M500 5.00mm FSD 40230-63
DSCP013-M525 5.25mm FSD 40230-64
DSCP013-M550 5.50mm FSD 40230-65
DSCP013-M575 5.75mm FSD 40230-66
DSCP013-M600 6.00mm FSD 40230-67
