DSCP015 Series Spacers

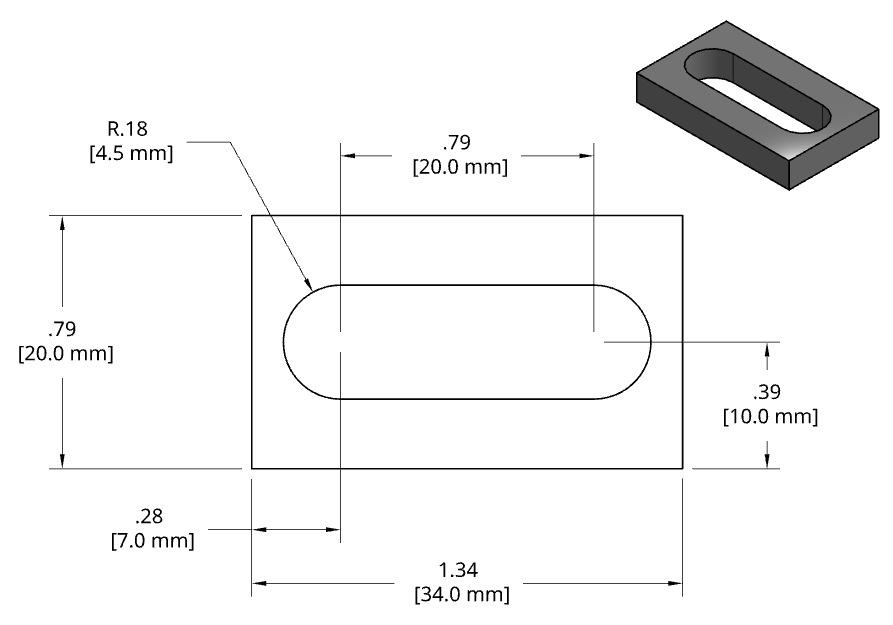

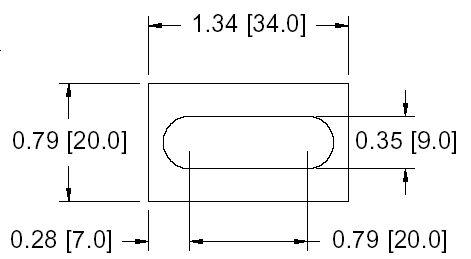

DSCP015 Series Shim Drawing


View PDF Catalog Page

DSCP015 Series Individual Spacers

Part Number Thickness Other Part Numbers
DSCP015-M300 3.00mm ASP330S
DSCP015-M320 3.20mm ASP332S
DSCP015-M340 3.40mm ASP334S
DSCP015-M360 3.60mm ASP336S
DSCP015-M380 3.80mm ASP338S
DSCP015-M400 4.00mm ASP340S
DSCP015-M420 4.20mm ASP342S
DSCP015-M440 4.40mm ASP344S
DSCP015-M460 4.60mm ASP346S
DSCP015-M480 4.80mm ASP348S
DSCP015-M500 5.00mm ASP350S
DSCP015-M520 5.20mm ASP352S
DSCP015-M540 5.40mm ASP354S
DSCP015-M560 5.60mm ASP356S
DSCP015-M580 5.80mm ASP358S
DSCP015-M600 6.00mm ASP360S
DSCP015-M620 6.20mm ASP362S
DSCP015-M640 6.40mm ASP364S
DSCP015-M660 6.60mm ASP366S
DSCP015-M680 6.80mm ASP368S
DSCP015-M700 7.00mm ASP370S
