DSCP031 Series Spacers

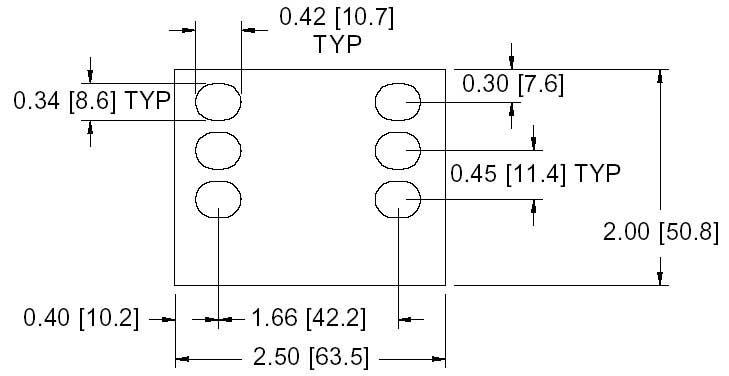

DSCP031 Series Shim Drawing


View PDF Catalog Page

DSCP031 Series Individual Spacers

Part Number Thickness Other Part Numbers
DSCP031-M050 0.50mm 41-502-1960, SAS 65163-05
DSCP031-M100 1.00mm 41-502-1961, SAS 65163-10
DSCP031-M150 1.50mm 41-502-1962, SAS 65163-15
DSCP031-M200 2.00mm 41-502-1963, SAS 65163-20
DSCP031-M250 2.50mm 41-502-1964, SAS 65163-25
DSCP031-M300 3.00mm 41-502-1965, SAS 65163-30
DSCP031-M350 3.50mm 41-502-1966, SAS 65163-35
DSCP031-M400 4.00mm 41-502-1967, SAS 65163-40
DSCP031-M450 4.50mm 41-502-1968, SAS 65163-45
DSCP031-M500 5.00mm 41-502-1969, SAS 65163-50
DSCP031-M550 5.50mm 41-502-1970, SAS 65163-55
DSCP031-M600 6.00mm 41-502-1971, SAS 65163-60
DSCP031-M650 6.50mm 41-502-1972, SAS 65163-65
DSCP031-M700 7.00mm 41-502-1973, SAS 65163-70
DSCP031-M750 7.50mm 41-502-1974, SAS 65163-75
DSCP031-M800 8.00mm 41-502-1975, SAS 65163-80
