DSCP036 Series Spacers

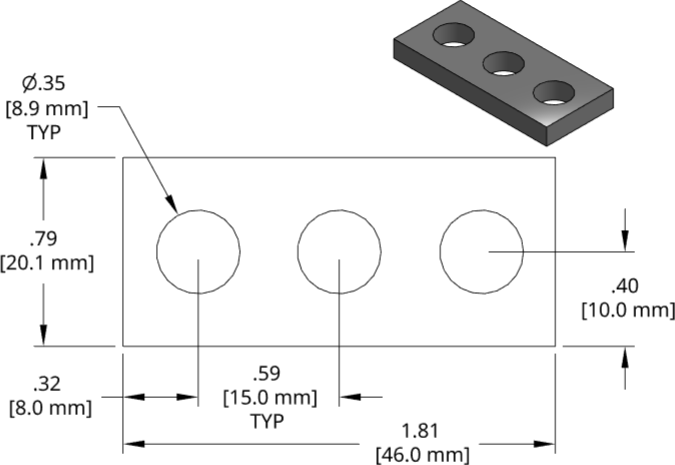

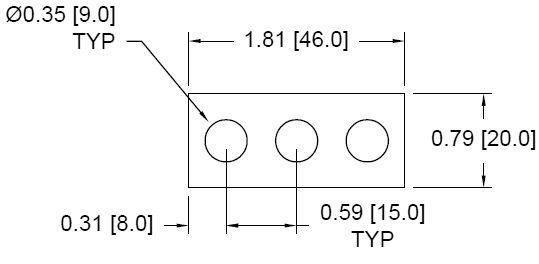

DSCP036 Series Shim Drawing


View PDF Catalog Page

DSCP036 Series Individual Spacers

Part Number Thickness Other Part Numbers
DSCP036-M025 0.25mm
DSCP036-M050 0.50mm
DSCP036-M100 1.00mm
DSCP036-M200 2.00mm
DSCP036-M300 3.00mm ASP330N
DSCP036-M320 3.20mm ASP332N
DSCP036-M340 3.40mm ASP334N
DSCP036-M360 3.60mm ASP336N
DSCP036-M380 3.80mm ASP338N
DSCP036-M400 4.00mm ASP340N
DSCP036-M420 4.20mm ASP342N
DSCP036-M440 4.40mm ASP344N
DSCP036-M460 4.60mm ASP346N
DSCP036-M480 4.80mm ASP348N
DSCP036-M500 5.00mm ASP350N
DSCP036-M520 5.20mm ASP352N
DSCP036-M540 5.40mm ASP354N
DSCP036-M560 5.60mm ASP356N
DSCP036-M580 5.80mm ASP358N
DSCP036-M600 6.00mm ASP360N
DSCP036-M620 6.20mm ASP362N
DSCP036-M640 6.40mm ASP364N
DSCP036-M660 6.60mm ASP366N
DSCP036-M680 6.80mm ASP368N
DSCP036-M700 7.00mm ASP370N
