DSC Shim and Specialty Washers

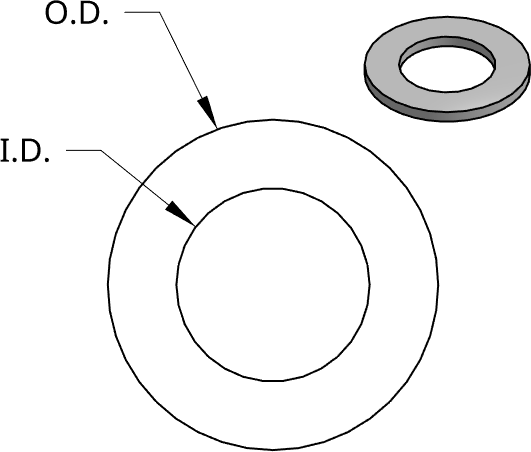

General Washer Drawing


View PDF Catalog Page

Dimensions are in inches

Part Number O.D. I.D. Thickness Material Legacy Cross-references
DSCW001-E060 0.50 0.21 0.06 steel FSD 36577
DSCW002-E100 0.62 0.21 0.10 steel FSD 14312
DSCW003-E130 1.00 0.38 0.13 steel 56ZM 2359-9
DSCW004-E130 1.00 0.38 0.13 steel STD 40-4
DSCW005-E190 0.75 0.39 0.19 steel WG 1104-51
DSCW006-E100 0.75 0.41 0.10 steel FSD 14184
DSCW007-E100 0.81 0.41 0.10 steel FSD 14150
DSCW008-E130 1.24 0.42 0.13 steel FSD 14120
DSCW009-E130 1.75 0.44 0.13 steel FSD 14101-1
DSCW010-E190 1.92 0.47 0.19 steel 1493919
DSCW011-E002 0.88 0.50 0.002 steel WG 51-76-A
DSCW012-E005 0.88 0.50 0.005 steel WG 51-76-C
DSCW013-E032 0.88 0.50 0.032 steel WG 51-76-F
DSCW014-E010 0.88 0.50 0.10 steel WG 51-76-D
DSCW015-E003 0.88 0.50 0.003 steel WG 51-76-B
DSCW016-E015 0.88 0.50 0.015 steel WG 51-76-E
DSCW017-E380 1.25 0.50 0.38 steel 56ZM 2359-7
DSCW019-E380 2.13 0.50 0.38 steel FSD 14162
DSCW020-E190 1.38 0.51 0.19 steel
DSCW021-E100 0.88 0.53 0.10 steel FSD 14151
DSCW022-E130 1.00 0.53 0.13 steel STD 40-2
DSCW023-E190 1.25 0.53 0.19 steel FSD 14128
DSCW024-E380 1.50 0.53 0.38 steel FSD 14083
DSCW025-E060 0.81 0.54 0.06 steel FSD 14013
DSCW026-E160 1.18 0.54 0.16 steel FSD 14010
DSCW027-E160 1.18 0.54 0.16 steel 6022899
DSCW028-E160 1.18 0.54 0.16 steel 41-12-839-01
DSCW029-E160 1.50 0.54 0.13 steel FSD 14121
DSCW030-E130 2.00 0.54 0.13 steel FSD 14121-52
DSCW031-E120 0.81 0.55 0.12 steel FSD 14126
DSCW032-E500 1.06 0.55 0.50 steel FSD 14125
DSCW033-E120 1.66 0.55 0.20 steel FSD 14123
DSCW034-E060 1.75 0.56 0.06 steel FSD 14014
DSCW035-E130 1.25 0.56 0.13 steel FSD 14125
DSCW035-E200 1.25 0.56 0.20 steel
DSCW036-E060 1.50 0.65 0.06 steel FSD 14119
DSCW037-E250 1.50 0.65 0.25 steel FSD 14091
DSCW038-E090 1.62 0.65 0.09 steel FSD 32789
DSCW039-E090 1.75 0.65 0.09 steel FSD 32788
DSCW040-E090 2.50 0.65 0.09 steel CL 145-60
DSCW041-E090 1.97 0.65 0.09 steel CL 146-54
DSCW042-E130 1.25 0.66 0.13 steel STD 40-1
DSCW043-E120 2.00 0.66 0.12 steel WG1442-53
DSCW044-E120 2.25 0.66 0.12 steel WG1211-53
DSCW045-E200 1.25 0.67 0.20 steel FSD 14124
DSCW046-E120 1.50 0.76 0.12 steel CL 127-60
DSCW047-E130 1.25 0.78 0.13 steel STD 40-3
DSCW048-E190 1.50 0.78 0.19 steel STD 40-7
DSCW049-E015 1.00 0.81 0.015 steel WG 629-59-E
DSCW049-E032 1.00 0.81 0.032 steel WG 629-59-F
DSCW049-E150 1.00 0.81 0.15 steel
DSCW050-E320 1.00 0.81 0.32 steel
DSCW051-E010 1.00 0.81 0.01 steel WG 629-59-D
DSCW052-E002 1.00 0.81 0.002 steel WG 629-59-A
DSCW053-E003 1.00 0.81 0.003 steel WG 629-59-B
DSCW054-E005 1.00 0.81 0.005 steel WG 629-59-C
DSCW055-E130 1.38 0.88 0.13 steel FSD 14182
DSCW56-E210 1.50 0.90 0.21 steel CL 124-51
DSCW057-E002 1.38 0.94 0.002 steel WG 2416-53-A
DSCW058-E015 1.38 0.94 0.015 steel WG 2416-53-E
DSCW059-E003 1.38 0.94 0.003 steel WG 2416-53-B
DSCW060-E032 1.38 0.94 0.032 steel WG 2416-53-F
DSCW061-E005 1.38 0.94 0.005 steel WG 2416-53-C
DSCW062-E010 1.38 0.94 0.01 steel WG 2416-53-D
DSCW063-E010 1.25 1.00 0.01 steel WG 521-75-D
DSCW064-E015 1.25 1.00 0.015 steel WG 521-75-B
DSCW065-E032 1.25 1.00 0.032 steel WG 521-75-F
DSCW066-E005 1.25 1.00 0.005 steel WG 521-75-C
DSCW067-E003 1.25 1.00 0.003 steel WG 521-75-B
DSCW068-E002 1.25 1.00 0.002 steel WG 521-75-A
DSCW069-E120 1.71 1.00 0.12 steel FSD 14163
DSCW070-E060 1.75 1.01 0.06 steel WG753-51
DSCW071-E150 1.38 1.02 0.15 steel WT140X-56
DSCW072-E150 1.38 1.02 0.15 steel FSD 14170
DSCW073-E190 1.88 1.03 0.19 steel WG308-51
DSCW074-E130 2.00 1.03 0.13 steel CL 159-58
DSCW075-E190 2.00 1.03 0.19 steel STD 40-5
DSCW076-E120 1.50 1.06 0.12 steel WG802-51
DSCW077-E250 2.50 1.06 0.25 steel STD 40-8
DSCW078-E040 1.75 1.21 0.04 steel WG 1064-52
DSCW079-E005 1.62 1.24 0.005 steel WG 2416-65-C
DSCW080-E010 1.62 1.24 0.01 steel WG 2416-65-D
DSCW081-E003 1.62 1.24 0.003 steel WG 2416-65-B
DSCW082-E002 1.62 1.24 0.002 steel WG 2416-65-A
DSCW083-E015 1.62 1.24 0.015 steel WG 2416-65-E
DSCW084-E032 1.62 1.24 0.032 steel WG 2416-65-F
DSCW085-E032 1.50 1.25 0.032 steel WG 2416-57-F
DSCW086-E015 1.50 1.25 0.015 steel WG 2416-57-E
DSCW087-E003 1.50 1.25 0.003 steel WG 2416-57-B
DSCW088-E005 1.50 1.25 0.005 steel WG 2416-57-C
DSCW089-E010 1.50 1.25 0.010 steel WG 2416-57-D
DSCW090-E002 1.50 1.25 0.002 steel WG 2416-56-A
DSCW091-E060 1.75 1.25 0.060 steel WT134-57
DSCW092-E120 1.75 1.25 0.12 steel WG786-51
DSCW093-E120 1.75 1.25 0.12 steel WG921-51
DSCW094-E120 2.00 1.28 0.12 steel WG1370-51
DSCW095-E190 2.25 1.28 0.19 steel STD 40-6
DSCW096-E120 2.00 1.38 0.12 steel WG840-51
DSCW097-E120 2.25 1.40 0.12 steel WG780-51
DSCW098-E040 1.75 1.40 0.04 steel WG1064-51
DSCW099-E003 1.82 1.50 0.003 steel WG 2416-61-B
DSCW100-E032 1.82 1.50 0.032 steel WG 2416-61-F
DSCW101-E005 1.82 1.50 0.005 steel WG 2416-61-C
DSCW102-E010 1.82 1.50 0.01 steel WG 2416-61-D
DSCW103-E002 1.82 1.50 0.002 steel WG 2416-61-A
DSCW104-E015 1.82 1.50 0.015 steel WG 2416-61-E
DSCW105-E032 1.94 1.50 0.032 steel WG 642-51-F
DSCW106-E005 1.94 1.50 0.005 steel WG 642-51-C
DSCW107-E015 1.94 1.50 0.015 steel WG 642-51-E
DSCW108-E002 1.94 1.50 0.002 steel WG 642-51-A
DSCW109-E003 1.94 1.50 0.003 steel WG 642-51-B
DSCW110-E010 1.94 1.50 0.01 steel WG 642-51-D
DSCW111-E120 2.25 1.54 0.12 steel WG1511-51
DSCW112-E002 1.81 1.56 0.002 steel WG 522-54-A
DSCW113-E032 1.81 1.56 0.032 steel WG 522-54-F
DSCW114-E005 1.81 1.56 0.005 steel WG 522-54-C
DSCW115-E015 1.81 1.56 0.015 steel WG 522-54-E
DSCW116-E003 1.81 1.56 0.003 steel WG 522-54-B
DSCW117-E010 1.81 1.56 0.01 steel WG 522-54-D
DSCW118-E120 2.25 1.62 0.12 steel WG787-51
DSCW119-E120 2.75 1.62 0.12 steel WG922-51
DSCW120-E060 2.38 1.66 0.06 steel WG577-51
DSCW121-E120 2.75 1.66 0.12 steel WG929-51
DSCW122-E002 1.94 1.75 0.002 steel WG 2507-54-A
DSCW123-E010 1.94 1.75 0.01 steel WG 2507-54-D
DSCW124-E005 1.94 1.75 0.005 steel WG 2507-54-C
DSCW125-E003 1.94 1.75 0.003 steel WG 2507-54-B
DSCW126-E032 1.94 1.75 0.032 steel WG 2507-54-F
DSCW127-E015 1.94 1.75 0.015 steel WG 2507-54-E
DSCW128-E120 2.25 1.94 0.12 steel WG790-51
DSC129-E120 2.50 1.94 0.12 steel WG970-51
DSCW130-E120 2.50 1.94 0.12 steel WG980-51
DSCW131-E120 2.75 1.94 0.12 steel WG923-51
DSCW132-E120 3.00 1.97 0.12 steel WG1080-51
DSCW133-E002 3.94 3.25 0.002 steel WG2416-59-A
DSCW134-E010 3.94 3.25 0.01 steel WG2416-59-D
DSCW135-E003 3.94 3.25 0.003 steel WG2416-59-B
DSCW136-E032 3.94 3.25 0.032 steel WG2416-59-F
DSCW137-E005 3.94 3.25 0.005 steel WG2416-59-C
DSCW138-E015 3.94 3.25 0.015 steel WG2416-59-E
