DSCP030 Series Spacers

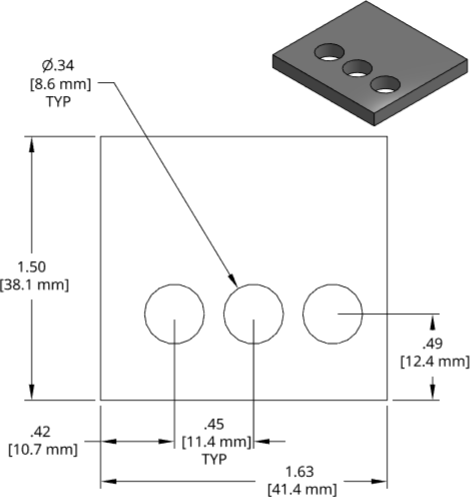

DSCP030 Series Shim Drawing


View PDF Catalog Page

DSCP030 Series Individual Spacers

Part Number Thickness Other Part Numbers STEP Download
DSCP030-M050 0.50mm 41-502-1941, SAS 33840-05 DSCP030-M050.step
DSCP030-M100 1.00mm 41-502-1942, SAS 33840-10 DSCP030-M100.step
DSCP030-M150 1.50mm 41-502-1943, SAS 33840-15 DSCP030-M150.step
DSCP030-M200 2.00mm 41-502-1944, SAS 33840-20 DSCP030-M200.step
DSCP030-M250 2.50mm 41-502-1945, SAS 33840-25 DSCP030-M250.step
DSCP030-M300 3.00mm 41-502-1946, SAS 33840-30 DSCP030-M300.step
DSCP030-M350 3.50mm 41-502-1947, SAS 33840-35 DSCP030-M350.step
DSCP030-M400 4.00mm 41-502-1948, SAS 33840-40 DSCP030-M400.step
DSCP030-M450 4.50mm 41-502-1949, SAS 33840-45 DSCP030-M450.step
DSCP030-M500 5.00mm 41-502-1950, SAS 33840-50 DSCP030-M500.step
DSCP030-M550 5.50mm 41-502-1951, SAS 33840-55 DSCP030-M550.step
DSCP030-M600 6.00mm 41-502-1952, SAS 33840-60 DSCP030-M600.step
DSCP030-M650 6.50mm 41-502-1953, SAS 33840-65 DSCP030-M650.step
DSCP030-M700 7.00mm 41-502-1954, SAS 33840-70 DSCP030-M700.step
DSCP030-M750 7.50mm 41-502-1955, SAS 33840-75 DSCP030-M750.step
DSCP030-M800 8.00mm 41-502-1956, SAS 33840-80 DSCP030-M800.step
