DSCH097 Series Shims

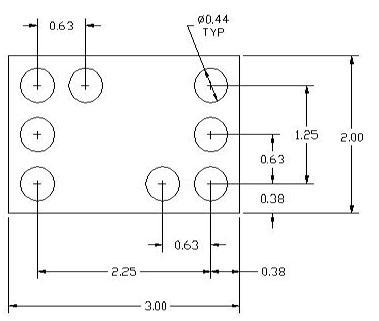

DSCH097 Series Shim Drawing


View PDF Catalog Page

DSCH097 Series Individual Shims

Stock Code Thickness Legacy Stock Codes STEP Download
DSCH097-M025 0.25mm DSCH097-M025.step
DSCH097-M050 0.50mm DSCH097-M050.step
DSCH097-M100 1.00mm DSCH097-M100.step
DSCH097-M200 2.00mm DSCH097-M200.step
DSCH097-E015 .015 inch CSS 812-3 DSCH097-E015.step
DSCH097-E032 .031 inch CSS 812-1 DSCH097-E032.step
DSCH097-E062 .062 inch CSS 812-2 DSCH097-E062.step

DSCH097 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH097-M305 3.0mm Set 0 2 1 2
DSCH097-M454 4.5mm Set 1 2 1 0
DSCH097-M505 5.0mm Set 1 2 2 0
DSCH097-M506 5.0mm Set 1 2 1 2
DSCH097-M507 5.0mm Set 1 1 3 2
DSCH097-M605 6.0mm Set 2 1 2 0
DSCH097-M706 7.0mm Set 2 2 2 0

DSCH097 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch .015 inch
DSCH097-E155 .150 inch set 1 2 2
