DSCH074 Series Shims

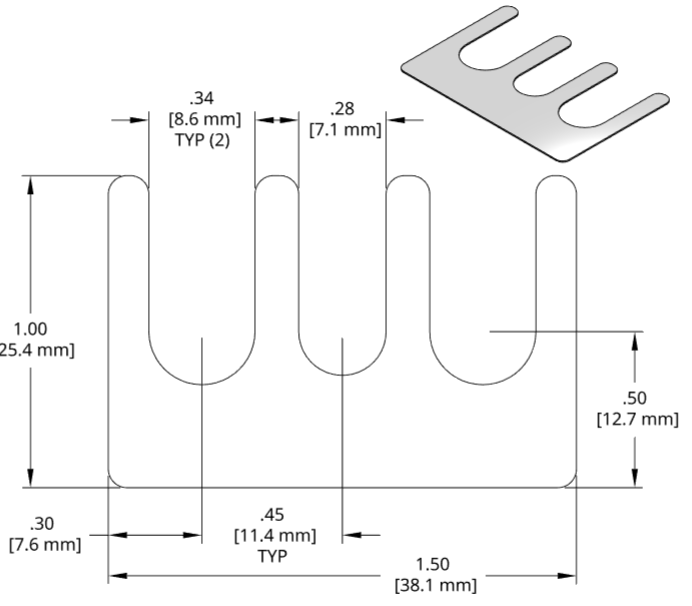

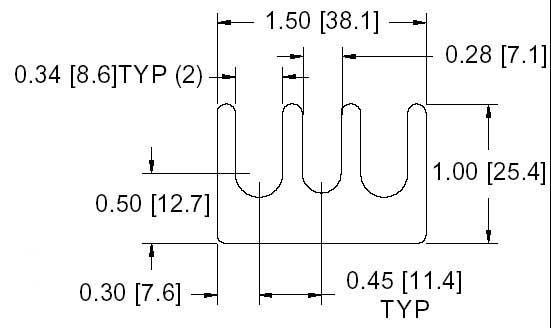

DSCH074 Series Shim Drawing


View PDF Catalog Page

DSCH074 Series Individual Shims

Stock Code Thickness Legacy Stock Codes STEP Download
DSCH074-M025 0.25mm M FS 15-MMMM DSCH074-M025.step
DSCH074-M050 0.50mm M FS 15-MMM DSCH074-M050.step
DSCH074-M100 1.00mm M FS 15-MM DSCH074-M100.step
DSCH074-M200 2.00mm M FS 15-M DSCH074-M200.step
DSCH074-E015 .015 inch FS 15-MMM DSCH074-E015.step
DSCH074-E032 .032 inch FS 15-MM DSCH074-E032.step
DSCH074-E062 .062 FS 15-M DSCH074-E062.step

DSCH074 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH074-M305 3.0mm Set 0 2 1 2
DSCH074-M454 4.5mm Set 1 2 1 0
DSCH074-M505 5.0mm Set 1 2 2 0
DSCH074-M506 5.0mm Set 1 2 1 2
DSCH074-M507 5.0mm Set 1 1 3 2
DSCH074-M605 6.0mm Set 2 1 2 0
DSCH074-M706 7.0mm Set 2 2 2 0

DSCH074 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch
DSCH074-E255 .250 inch Set 3 2
