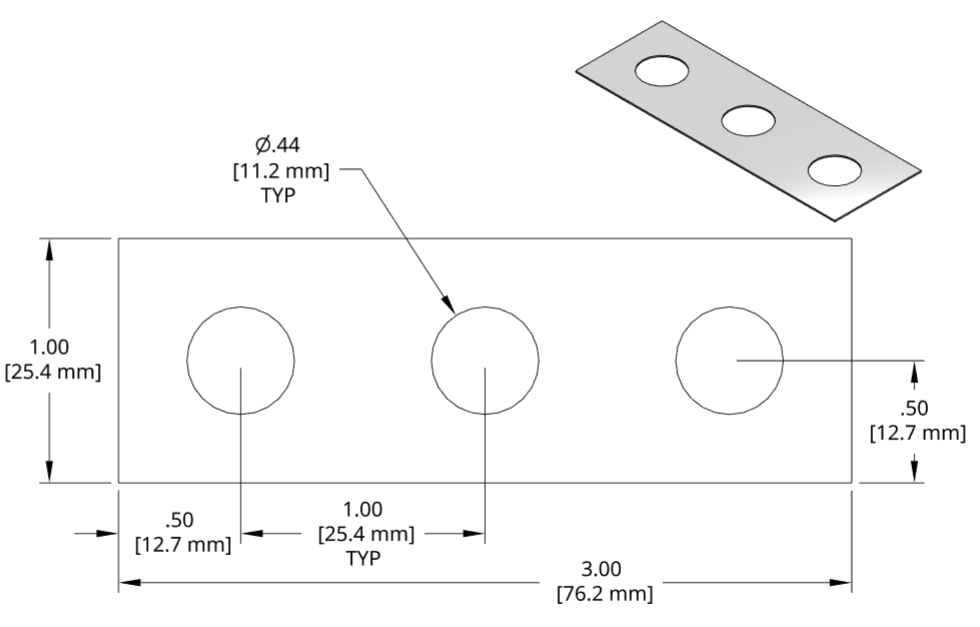

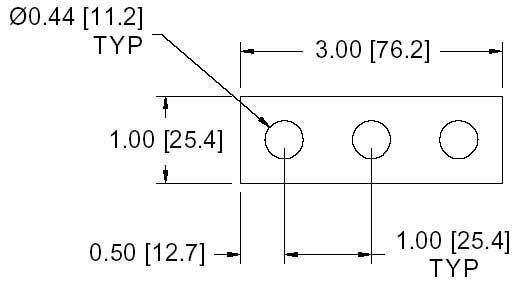

DSCH094 Series Shims
View PDF Catalog Page
DSCH094 Series Individual Shims
| Stock Code | Thickness | Legacy Stock Codes | STEP Download |
|---|---|---|---|
| DSCH094-M025 | 0.25mm | DSCH094-M025.step | |
| DSCH094-M050 | 0.50mm | DSCH094-M050.step | |
| DSCH094-M100 | 1.00mm | DSCH094-M100.step | |
| DSCH094-M200 | 2.00mm | DSCH094-M200.step | |
| DSCH094-E015 | .015 inch | CSS 412-3 | DSCH094-E015.step |
| DSCH094-E032 | .031 inch | CSS 412-1 | DSCH094-E032.step |
| DSCH094-E062 | .062 inch | CSS 412-2 | DSCH094-E062.step |
DSCH094 Series Shim Set Stackups
| Set Number | Stackup | 2.00mm | 1.00mm | 0.50mm | 0.25mm |
|---|---|---|---|---|---|
| DSCH094-M305 | 3.0mm Set | 0 | 2 | 1 | 2 |
| DSCH094-M454 | 4.5mm Set | 1 | 2 | 1 | 0 |
| DSCH094-M505 | 5.0mm Set | 1 | 2 | 2 | 0 |
| DSCH094-M506 | 5.0mm Set | 1 | 2 | 1 | 2 |
| DSCH094-M507 | 5.0mm Set | 1 | 1 | 3 | 2 |
| DSCH094-M605 | 6.0mm Set | 2 | 1 | 2 | 0 |
| DSCH094-M706 | 7.0mm Set | 2 | 2 | 2 | 0 |
DSCH094 Inch Shim Set Stackups
| Set Number | Stackup | .062 inch | .031 inch | .015 inch |
|---|---|---|---|---|
| DSCH094-E155 | .150 inch set | 1 | 2 | 2 |
