DSCH101 Series Shims

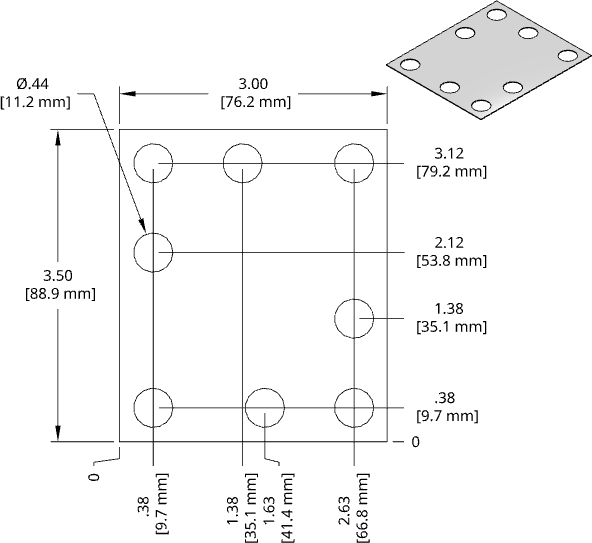

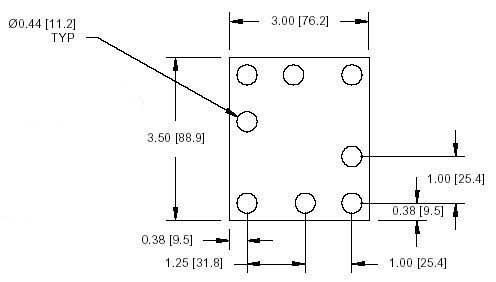

DSCH101 Series Shim Drawing


View PDF Catalog Page

DSCH101 Series Individual Shims

Part Number Thickness Legacy Part No's
DSCH101-E015 .015 inch CSS 1214-3
DSCH101-E032 .031 inch CSS 1214-1
DSCH101-E062 .062 inch CSS 1214-2

DSCH101 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch .015 inch
DSCH101-E155 .150 inch set 1 2 2
