DSCH110 Series Shims
View PDF Catalog Page

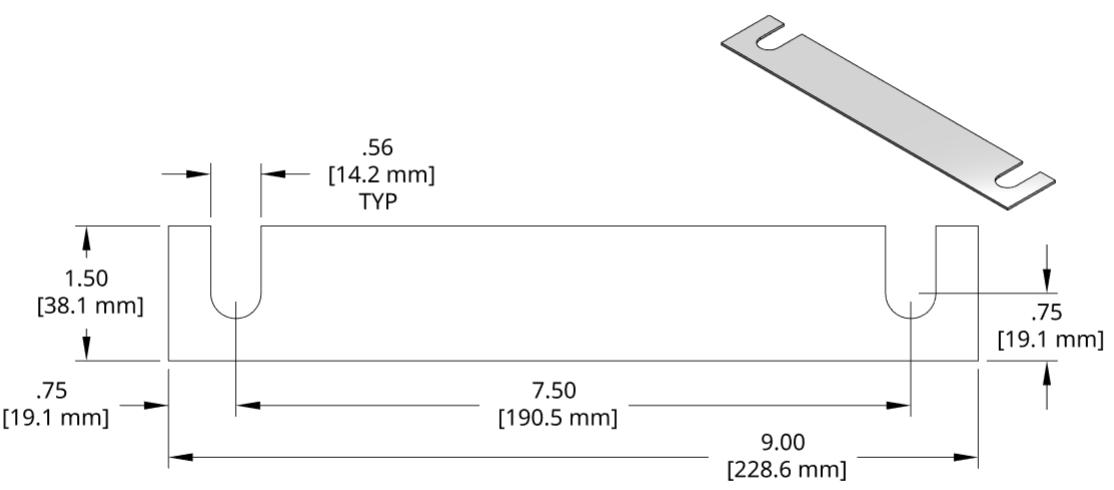

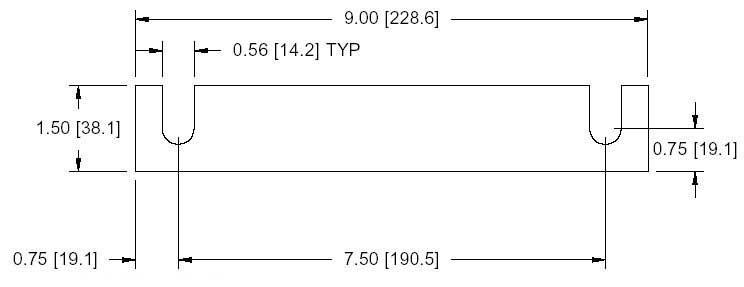

DSCH110 Series Individual Shims
| Stock Code | Thickness | STEP Download |
|---|---|---|
| DSCH110-M025 | 0.25mm | DSCH110-M025.step |
| DSCH110-M050 | 0.50mm | DSCH110-M050.step |
| DSCH110-M100 | 1.00mm | DSCH110-M100.step |
| DSCH110-M200 | 2.00mm | DSCH110-M200.step |
| DSCH110-E015 | .015 inch | DSCH110-E015.step |
| DSCH110-E032 | .032 inch | DSCH110-E032.step |
| DSCH110-E059 | .059 inch | DSCH110-E059.step |
| DSCH110-E062 | .062 inch | DSCH110-E062.step |
DSCH110 Series Shim Set Stackups
| Set Number | Stackup | 2.00mm | 1.00mm | 0.50mm | 0.25mm |
|---|---|---|---|---|---|
| DSCH110-M305 | 3.0mm Set | 0 | 2 | 1 | 2 |
| DSCH110-M454 | 4.5mm Set | 1 | 2 | 1 | 0 |
| DSCH110-M505 | 5.0mm Set | 1 | 2 | 2 | 0 |
| DSCH110-M506 | 5.0mm Set | 1 | 2 | 1 | 2 |
| DSCH110-M507 | 5.0mm Set | 1 | 1 | 3 | 2 |
| DSCH110-M605 | 6.0mm Set | 2 | 1 | 2 | 0 |
| DSCH110-M706 | 7.0mm Set | 2 | 2 | 2 | 0 |
DSCH110 Inch Shim Set Stackups
| Set Number | Stackup | .062 inch | .059 inch | .031 inch | Legacy Part No |
|---|---|---|---|---|---|
| DSCH110-E244 | .236 inch set | 0 | 4 | 0 | D113064 |
| DSCH110-E255 | .250 inch Set | 3 | 0 | 2 |
