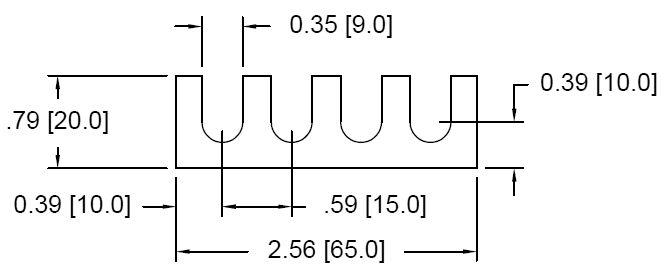

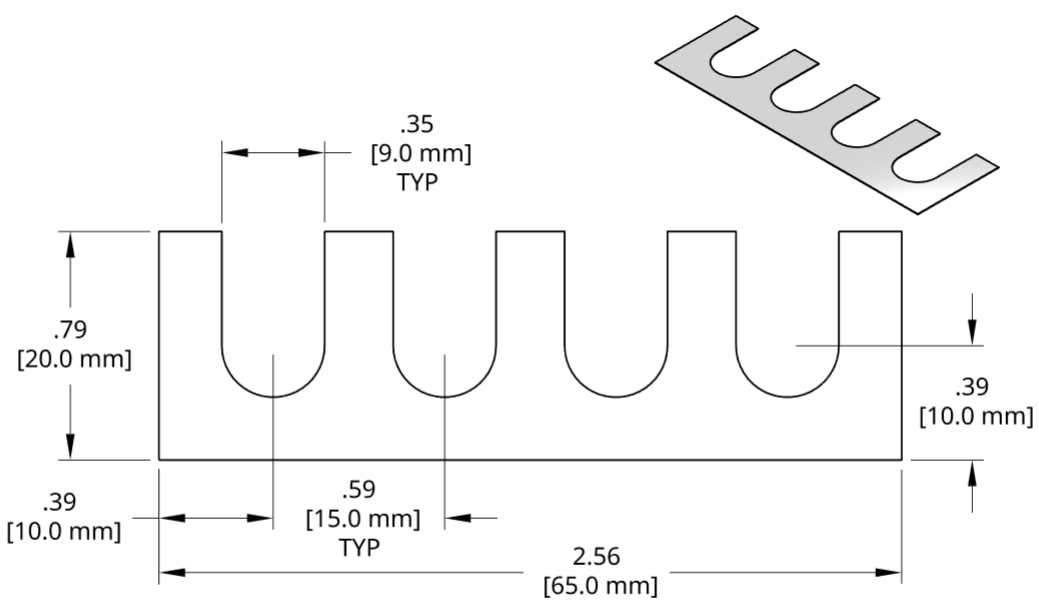

DSCH113 Series Shims
View PDF Catalog Page
DSCH113 Series Individual Shims
| Stock Code | Thickness | Legacy Stock Codes | STEP Download |
|---|---|---|---|
| DSCH113-M010 | 0.10mm | 11-38D-336 065/6 | DSCH113-M025.step |
| DSCH113-M020 | 0.20mm | 11-38D-336 065/5 | DSCH113-M050.step |
| DSCH113-M025 | 0.25mm | DSCH113-M100.step | |
| DSCH113-M050 | 0.50mm | 11-38D-336 065/4 | DSCH113-M200.step |
| DSCH113-M100 | 1.00mm | 11-38D-336 065/3 | DSCH113-E015.step |
| DSCH113-M200 | 2.00mm | 11-38D-336 065/2 | DSCH113-E032.step |
| DSCH113-M500 | 5.00 mm | 11-38D-336 065/1 | DSCH113-E062.step |
DSCH113 Series Shim Set Stackups
| Set Number | Stackup | 2.00mm | 1.00mm | 0.50mm | 0.25mm |
|---|---|---|---|---|---|
| DSCH113-M305 | 3.0mm set | 0 | 2 | 1 | 2 |
| DSCH113-M454 | 4.0mm set | 1 | 2 | 1 | 0 |
| DSCH113-M505 | 5.0mm set | 1 | 2 | 2 | 0 |
| DSCH113-M506 | 5.0mm set | 1 | 2 | 1 | 2 |
| DSCH113-M507 | 5.0mm set | 1 | 1 | 3 | 2 |
| DSCH113-M605 | 6.0mm set | 2 | 1 | 2 | 0 |
| DSCH113-M706 | 7.0mm set | 2 | 2 | 2 | 0 |
