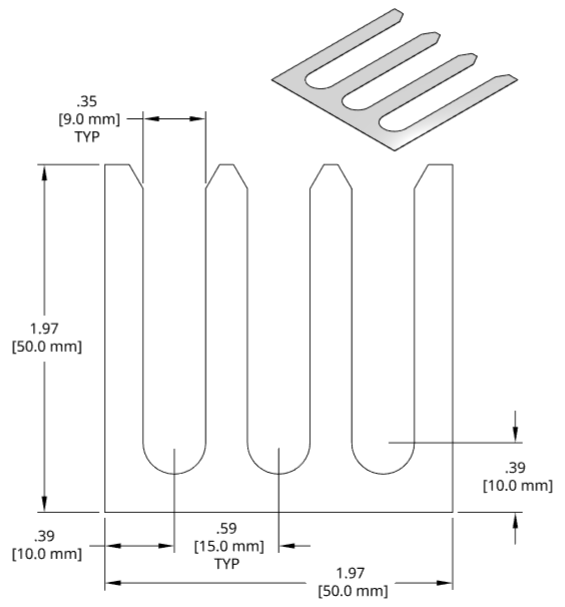

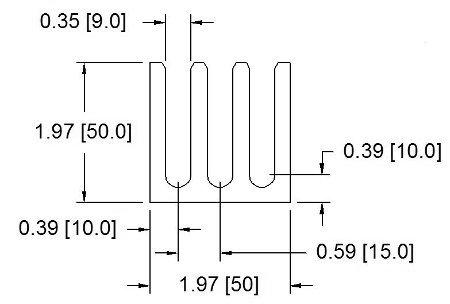

DSCH115 Series Shims
View PDF Catalog Page
DSCH115 Series Individual Shims
| Stock Code | Thickness | Legacy Stock Codes | STEP Download |
|---|---|---|---|
| DSCH115-M010 | 0.10mm | 11-38D 495 551/6 | DSCH115-M025.step |
| DSCH115-M020 | 0.20mm | 11-38D 495 551/5 | DSCH115-M050.step |
| DSCH115-M025 | 0.25mm | DSCH115-M100.step | |
| DSCH115-M050 | 0.50mm | 11-38D 495 551/4 | DSCH115-M200.step |
| DSCH115-M100 | 1.00mm | 11-38D 495 551/3 | DSCH115-E015.step |
| DSCH115-M200 | 2.00mm | 11-38D 495 551/2 | DSCH115-E032.step |
| DSCH115-M500 | 5.00 mm | 11-38D 495 551/1 | DSCH115-E062.step |
DSCH115 Series Shim Set Stackups
| Set Number | Stackup | 2.00mm | 1.00mm | 0.50mm | 0.25mm |
|---|---|---|---|---|---|
| DSCH115-M305 | 3.0mm set | 0 | 2 | 1 | 2 |
| DSCH115-M454 | 4.0mm set | 1 | 2 | 1 | 0 |
| DSCH115-M505 | 5.0mm set | 1 | 2 | 2 | 0 |
| DSCH115-M506 | 5.0mm set | 1 | 2 | 1 | 2 |
| DSCH115-M507 | 5.0mm set | 1 | 1 | 3 | 2 |
| DSCH115-M605 | 6.0mm set | 2 | 1 | 2 | 0 |
| DSCH115-M706 | 7.0mm set | 2 | 2 | 2 | 0 |
