DSCP001 Series Spacers

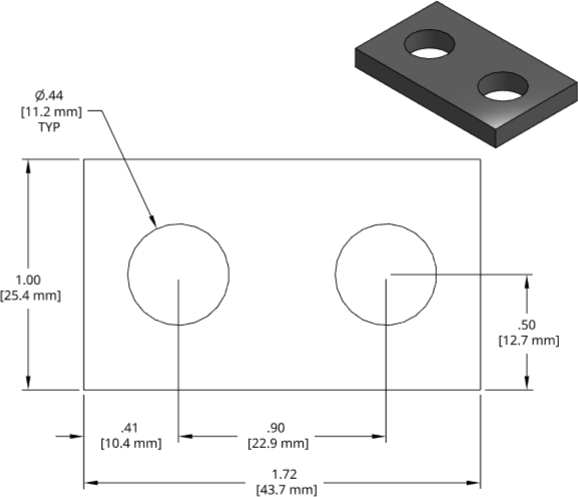

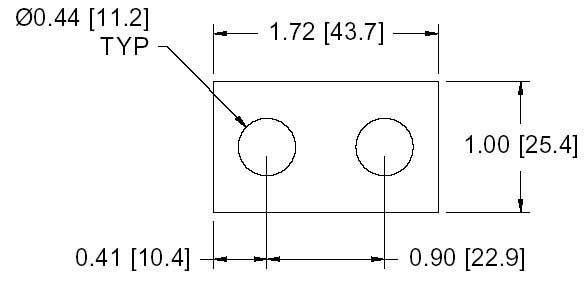

DSCP001 Series Shim Drawing


View PDF Catalog Page

DSCP001 Series Individual Spacers

Stock Code Thickness Other Part Numbers STEP Download
DSCP001-M200 2.00mm DSCP001-M200.step
DSCP001-M225 2.25mm DSCP001-M225.step
DSCP001-M250 2.50mm DSCP001-M250.step
DSCP001-M275 2.75mm DSCP001-M275.step
DSCP001-M300 3.00mm FSD 39279-51 DSCP001-M300.step
DSCP001-M325 3.25mm FSD 39279-52 DSCP001-M325.step
DSCP001-M350 3.50mm FSD 39279-53 DSCP001-M350.step
DSCP001-M375 3.75mm FSD 39279-54 DSCP001-M375.step
DSCP001-M400 4.00mm FSD 39279-55 DSCP001-M400.step
DSCP001-M425 4.25mm FSD 39279-56 DSCP001-M425.step
DSCP001-M450 4.50mm FSD 39279-57 DSCP001-M450.step
DSCP001-M475 4.75mm FSD 39279-58 DSCP001-M475.step
DSCP001-M500 5.00mm FSD 39279-59 DSCP001-M500.step
DSCP001-M525 5.25mm FSD 39279-60 DSCP001-M525.step
DSCP001-M550 5.50mm FSD 39279-61 DSCP001-M550.step
DSCP001-M575 5.75mm FSD 39279-62 DSCP001-M575.step
DSCP001-M600 6.00mm FSD 39279-63 DSCP001-M600.step
