DSCP008 Series Spacers

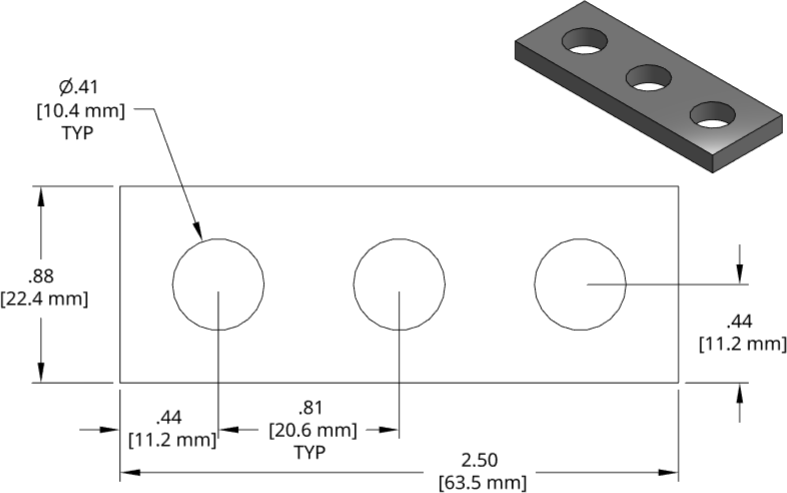

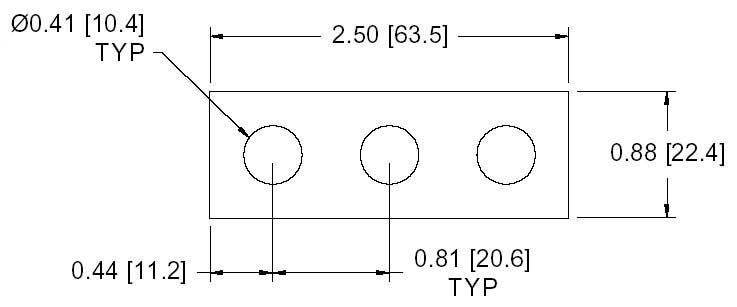

DSCP008 Series Shim Drawing


View PDF Catalog Page

DSCP008 Series Individual Spacers

Part Number Thickness Other Part Numbers
DSCP008-M200 2.00mm FSD 40225-51
DSCP008-M225 2.25mm FSD 40225-52
DSCP008-M250 2.50mm FSD 40225-53
DSCP008-M275 2.75mm FSD 40225-54
DSCP008-M300 3.00mm FSD 40225-55
DSCP008-M325 3.25mm FSD 40225-56
DSCP008-M350 3.50mm FSD 40225-57
DSCP008-M375 3.75mm FSD 40225-58
DSCP008-M400 4.00mm FSD 40225-59
DSCP008-M425 4.25mm FSD 40225-60
DSCP008-M450 4.50mm FSD 40225-61
DSCP008-M475 4.75mm FSD 40225-62
DSCP008-M500 5.00mm FSD 40225-63
DSCP008-M525 5.25mm FSD 40225-64
DSCP008-M550 5.50mm FSD 40225-65
DSCP008-M575 5.75mm FSD 40225-66
DSCP008-M600 6.00mm FSD 40225-67
