DSCP010 Series Spacers

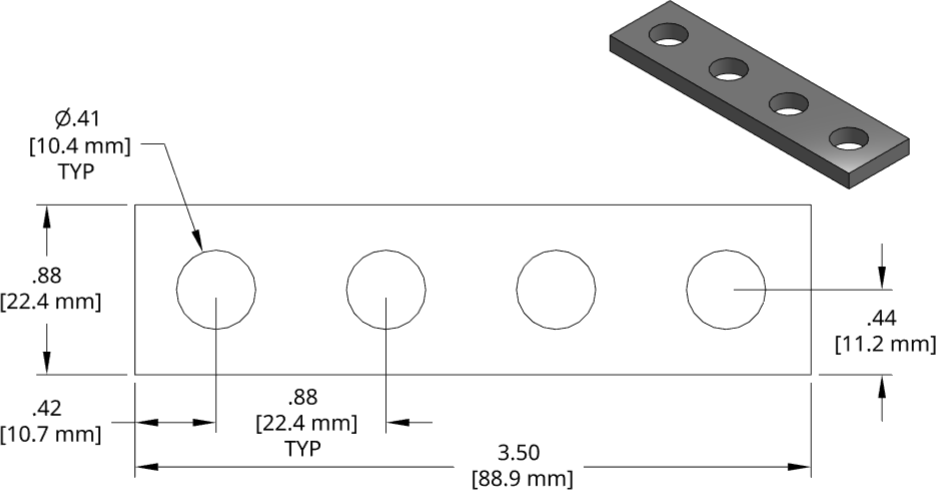

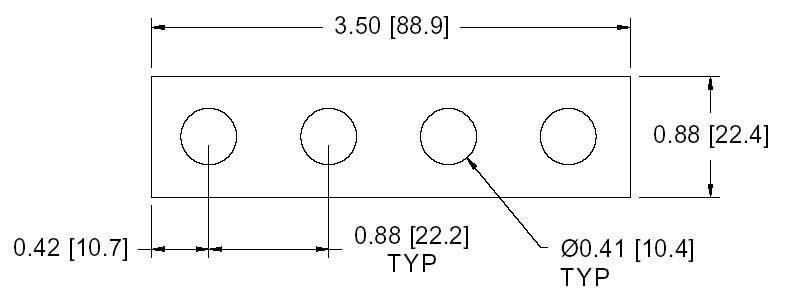

DSCP010 Series Shim Drawing


View PDF Catalog Page

DSCP010 Series Individual Spacers

Part Number Thickness Other Part Numbers
DSCP010-M200 2.00mm FSD 40227-51
DSCP010-M225 2.25mm FSD 40227-52
DSCP010-M250 2.50mm FSD 40227-53
DSCP010-M275 2.75mm FSD 40227-54
DSCP010-M300 3.00mm FSD 40227-55
DSCP010-M325 3.25mm FSD 40227-56
DSCP010-M350 3.50mm FSD 40227-57
DSCP010-M375 3.75mm FSD 40227-58
DSCP010-M400 4.00mm FSD 40227-59
DSCP010-M425 4.25mm FSD 40227-60
DSCP010-M450 4.50mm FSD 40227-61
DSCP010-M475 4.75mm FSD 40227-62
DSCP010-M500 5.00mm FSD 40227-63
DSCP010-M525 5.25mm FSD 40227-64
DSCP010-M550 5.50mm FSD 40227-65
DSCP010-M575 5.75mm FSD 40227-66
DSCP010-M600 6.00mm FSD 40227-67
