DSCP012 Series Spacers

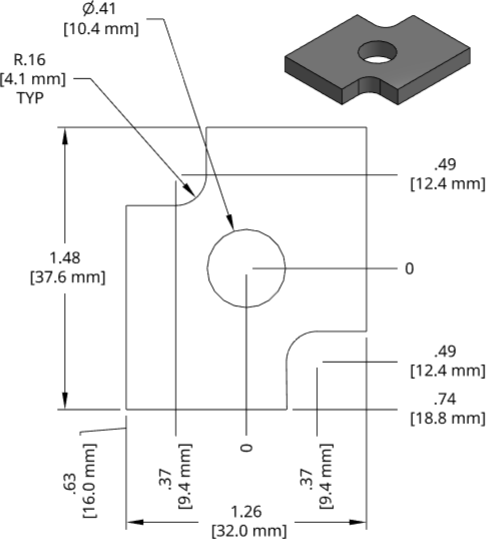

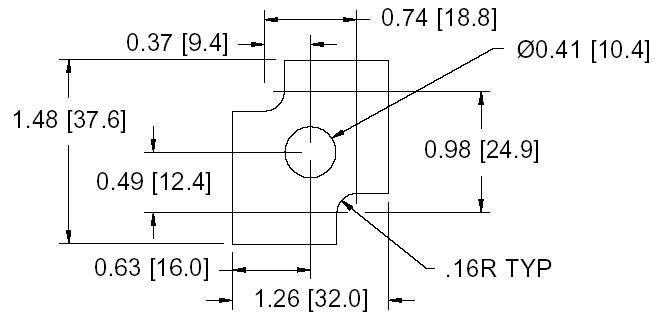

DSCP012 Series Shim Drawing


View PDF Catalog Page

DSCP012 Series Individual Spacers

Stock Code Thickness Other Part Numbers STEP Download
DSCP012-M200 2.00mm DSCP012-M200.step
DSCP012-M225 2.25mm DSCP012-M225.step
DSCP012-M250 2.50mm DSCP012-M250.step
DSCP012-M275 2.75mm DSCP012-M275.step
DSCP012-M300 3.00mm FSD 40229-51 DSCP012-M300.step
DSCP012-M325 3.25mm FSD 40229-52 DSCP012-M325.step
DSCP012-M350 3.50mm FSD 40229-53 DSCP012-M350.step
DSCP012-M375 3.75mm FSD 40229-54 DSCP012-M375.step
DSCP012-M400 4.00mm FSD 40229-55 DSCP012-M400.step
DSCP012-M425 4.25mm FSD 40229-56 DSCP012-M425.step
DSCP012-M450 4.50mm FSD 40229-57 DSCP012-M450.step
DSCP012-M475 4.75mm FSD 40229-58 DSCP012-M475.step
DSCP012-M500 5.00mm FSD 40229-59 DSCP012-M500.step
DSCP012-M525 5.25mm FSD 40229-60 DSCP012-M525.step
DSCP012-M550 5.50mm FSD 40229-61 DSCP012-M550.step
DSCP012-M575 5.75mm FSD 40229-62 DSCP012-M575.step
DSCP012-M600 6.00mm FSD 40229-63 DSCP012-M600.step
