DSCP014 Series Spacers

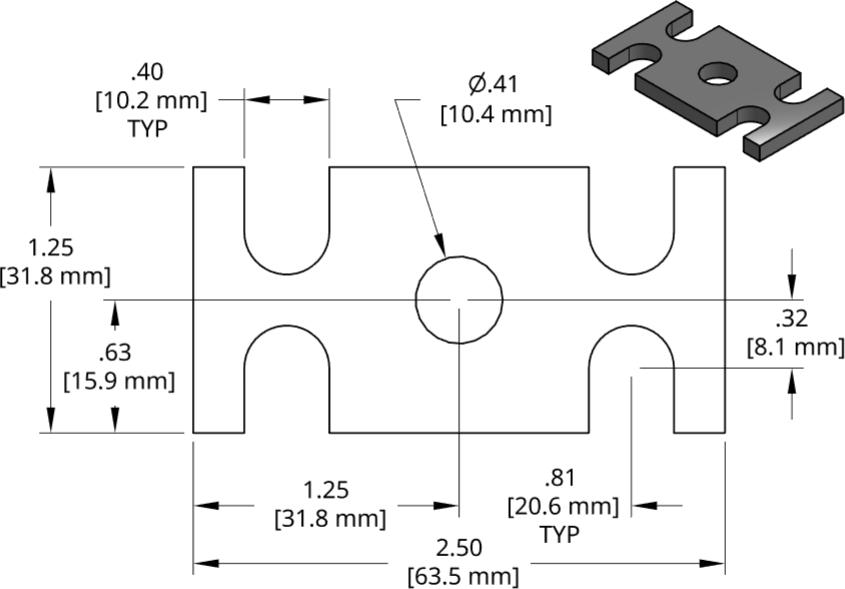

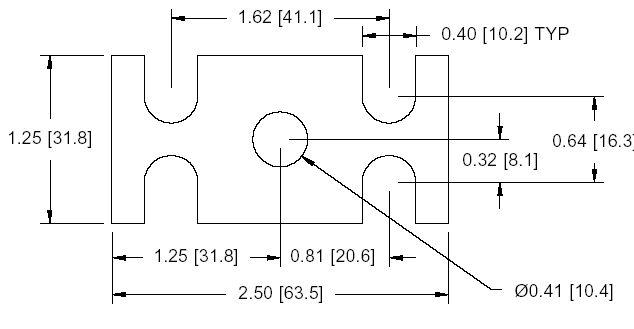

DSCP014 Series Shim Drawing


View PDF Catalog Page

DSCP014 Series Individual Spacers

Part Number Thickness Other Part Numbers
DSCP014-M200 2.00mm FSD 40231-51
DSCP014-M225 2.25mm FSD 40231-52
DSCP014-M250 2.50mm FSD 40231-53
DSCP014-M275 2.75mm FSD 40231-54
DSCP014-M300 3.00mm FSD 40231-55
DSCP014-M325 3.25mm FSD 40231-56
DSCP014-M350 3.50mm FSD 40231-57
DSCP014-M375 3.75mm FSD 40231-58
DSCP014-M400 4.00mm FSD 40231-59
DSCP014-M425 4.25mm FSD 40231-60
DSCP014-M450 4.50mm FSD 40231-61
DSCP014-M475 4.75mm FSD 40231-62
DSCP014-M500 5.00mm FSD 40231-63
DSCP014-M525 5.25mm FSD 40231-64
DSCP014-M550 5.50mm FSD 40231-65
DSCP014-M575 5.75mm FSD 40231-66
DSCP014-M600 6.00mm FSD 40231-67
