DSCP016 Series Spacers

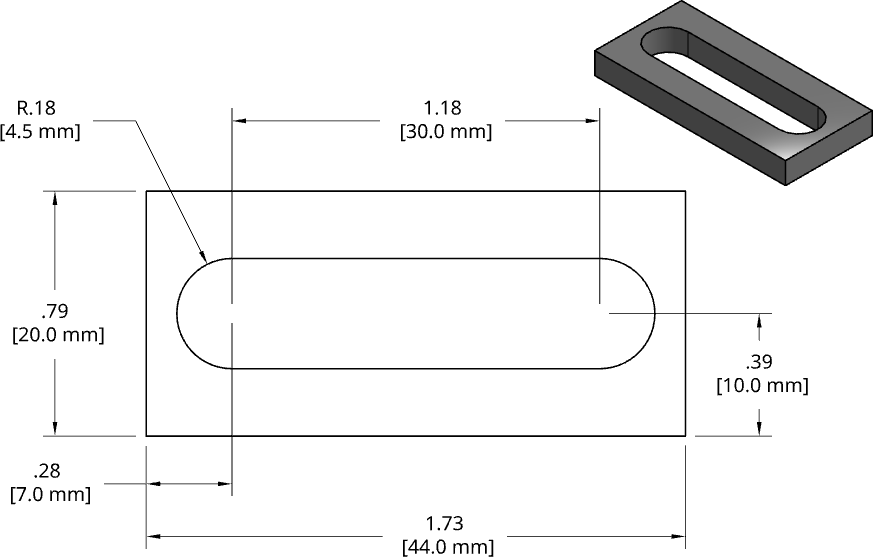

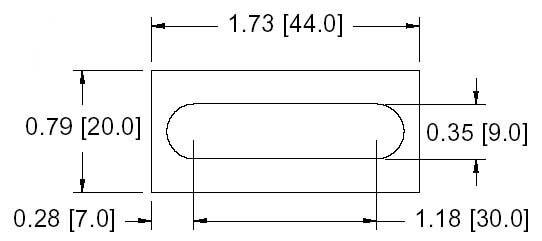

DSCP016 Series Shim Drawing


View PDF Catalog Page

DSCP016 Series Individual Spacers

Part Number Thickness Other Part Numbers
DSCP016-M300 3.00mm ASP430S
DSCP016-M320 3.20mm ASP432S
DSCP016-M340 3.40mm ASP434S
DSCP016-M360 3.60mm ASP436S
DSCP016-M380 3.80mm ASP438S
DSCP016-M400 4.00mm ASP440S
DSCP016-M420 4.20mm ASP442S
DSCP016-M440 4.40mm ASP444S
DSCP016-M460 4.60mm ASP446S
DSCP016-M480 4.80mm ASP448S
DSCP016-M500 5.00mm ASP450S
DSCP016-M520 5.20mm ASP452S
DSCP016-M540 5.40mm ASP454S
DSCP016-M560 5.60mm ASP456S
DSCP016-M580 5.80mm ASP458S
DSCP016-M600 6.00mm ASP460S
DSCP016-M620 6.20mm ASP462S
DSCP016-M640 6.40mm ASP464S
DSCP016-M660 6.60mm ASP466S
DSCP016-M680 6.80mm ASP468S
DSCP016-M700 7.00mm ASP470S
