DSCP017 Series Spacers

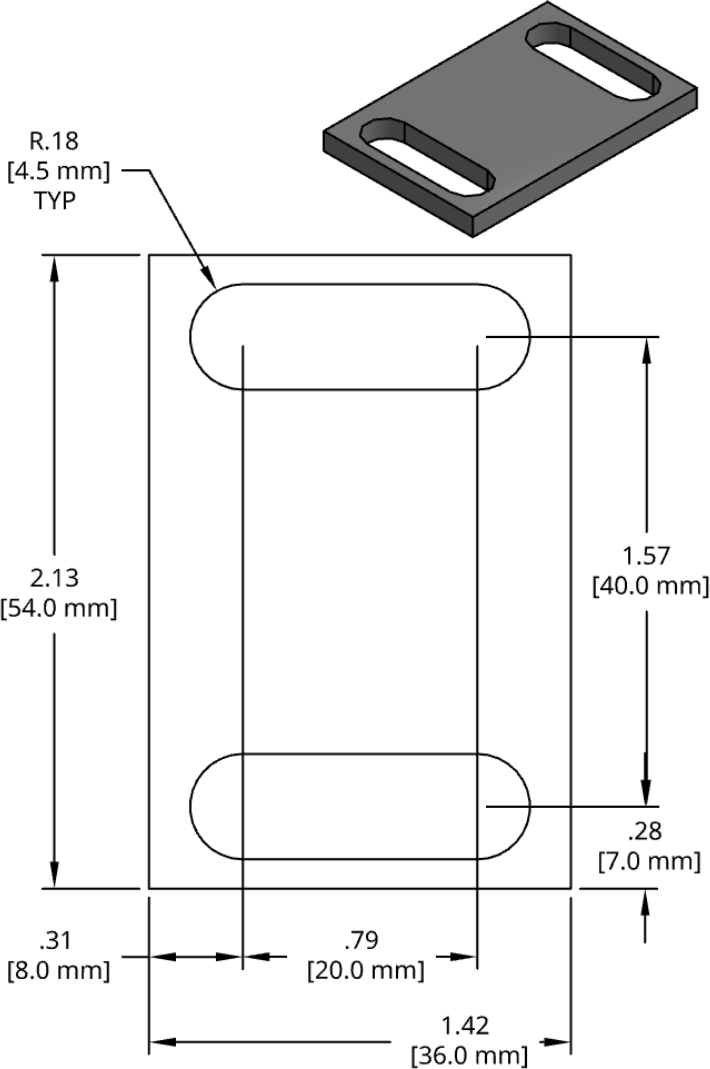

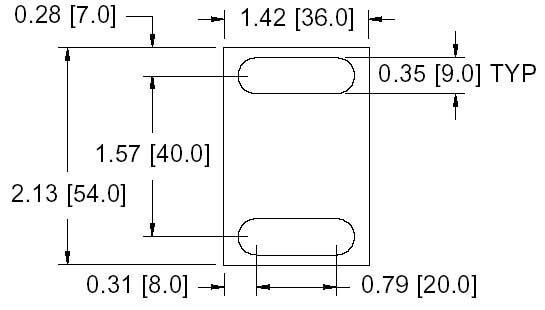

DSCP017 Series Shim Drawing


View PDF Catalog Page

DSCP017 Series Individual Spacers

Part Number Thickness Other Part Numbers
DSCP017-M300 3.00mm ASP630S
DSCP017-M320 3.20mm ASP632S
DSCP017-M340 3.40mm ASP634S
DSCP017-M360 3.60mm ASP636S
DSCP017-M380 3.80mm ASP638S
DSCP017-M400 4.00mm ASP640S
DSCP017-M420 4.20mm ASP642S
DSCP017-M440 4.40mm ASP644S
DSCP017-M460 4.60mm ASP646S
DSCP017-M480 4.80mm ASP648S
DSCP017-M500 5.00mm ASP650S
DSCP017-M520 5.20mm ASP652S
DSCP017-M540 5.40mm ASP654S
DSCP017-M560 5.60mm ASP656S
DSCP017-M580 5.80mm ASP658S
DSCP017-M600 6.00mm ASP660S
DSCP017-M620 6.20mm ASP662S
DSCP017-M640 6.40mm ASP664S
DSCP017-M660 6.60mm ASP666S
DSCP017-M680 6.80mm ASP668S
DSCP017-M700 7.00mm ASP670S
