DSCP034 Series Spacers

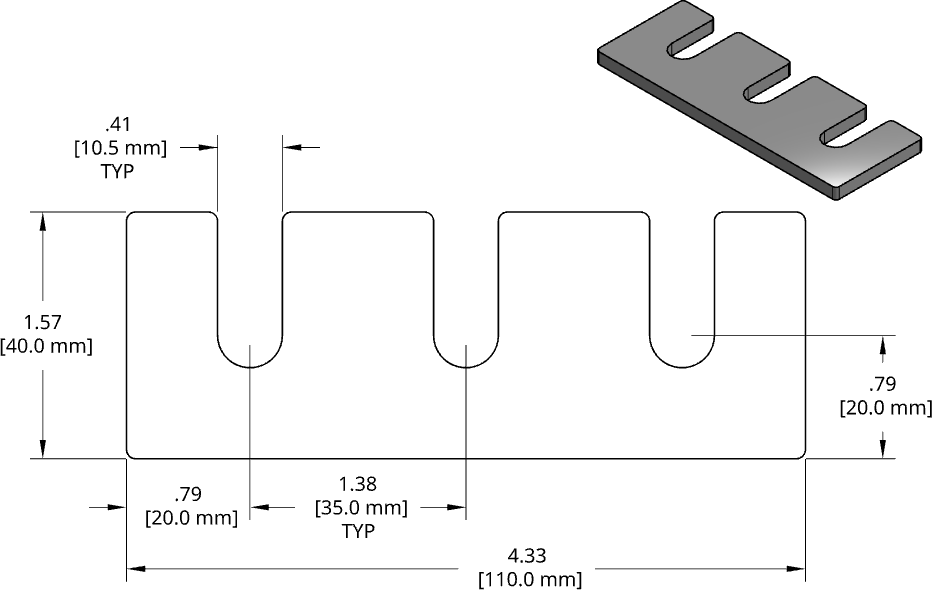

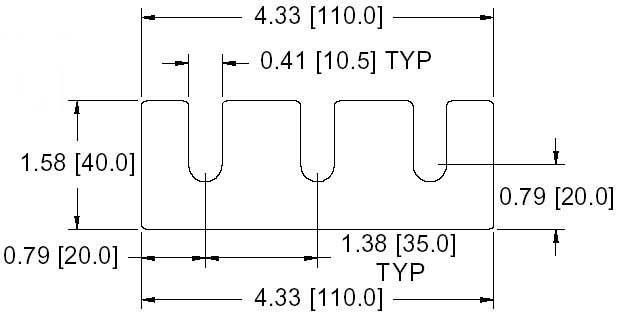

DSCP034 Series Shim Drawing


View PDF Catalog Page

DSCP034 Series Individual Spacers

Stock Code Thickness Other Part Numbers STEP download
DSCP034-M300 3.00mm ACS330S DSCP034-M300.step
DSCP034-M320 3.20mm ACS332S DSCP034-M320.step
DSCP034-M340 3.40mm ACS334S DSCP034-M340.step
DSCP034-M360 3.60mm ACS336S DSCP034-ME60.step
DSCP034-M380 3.80mm ACS338S DSCP034-M380.step
DSCP034-M400 4.00mm ACS340S DSCP034-M400.step
DSCP034-M420 4.20mm ACS342S DSCP034-M420.step
DSCP034-M440 4.40mm ACS344S DSCP034-M440.step
DSCP034-M460 4.60mm ACS346S DSCP034-M460.step
DSCP034-M480 4.80mm ACS348S DSCP034-M480.step
DSCP034-M500 5.00mm ACS350S DSCP034-M500.step
DSCP034-M520 5.20mm ACS352S DSCP034-M520.step
DSCP034-M540 5.40mm ACS354S DSCP034-M540.step
DSCP034-M560 5.60mm ACS356S DSCP034-M560.step
DSCP034-M580 5.80mm ACS358S DSCP034-M580.step
DSCP034-M600 6.00mm ACS360S DSCP034-M600.step
DSCP034-M620 6.20mm ACS362S DSCP034-M620.step
DSCP034-M640 6.40mm ACS364S DSCP034-M640.step
DSCP034-M660 6.60mm ACS366S DSCP034-M660.step
DSCP034-M680 6.80mm ACS368S DSCP034-M680.step
DSCP034-M700 7.00mm ACS370S DSCP034-M700.step
