DSCP038 Series Spacers

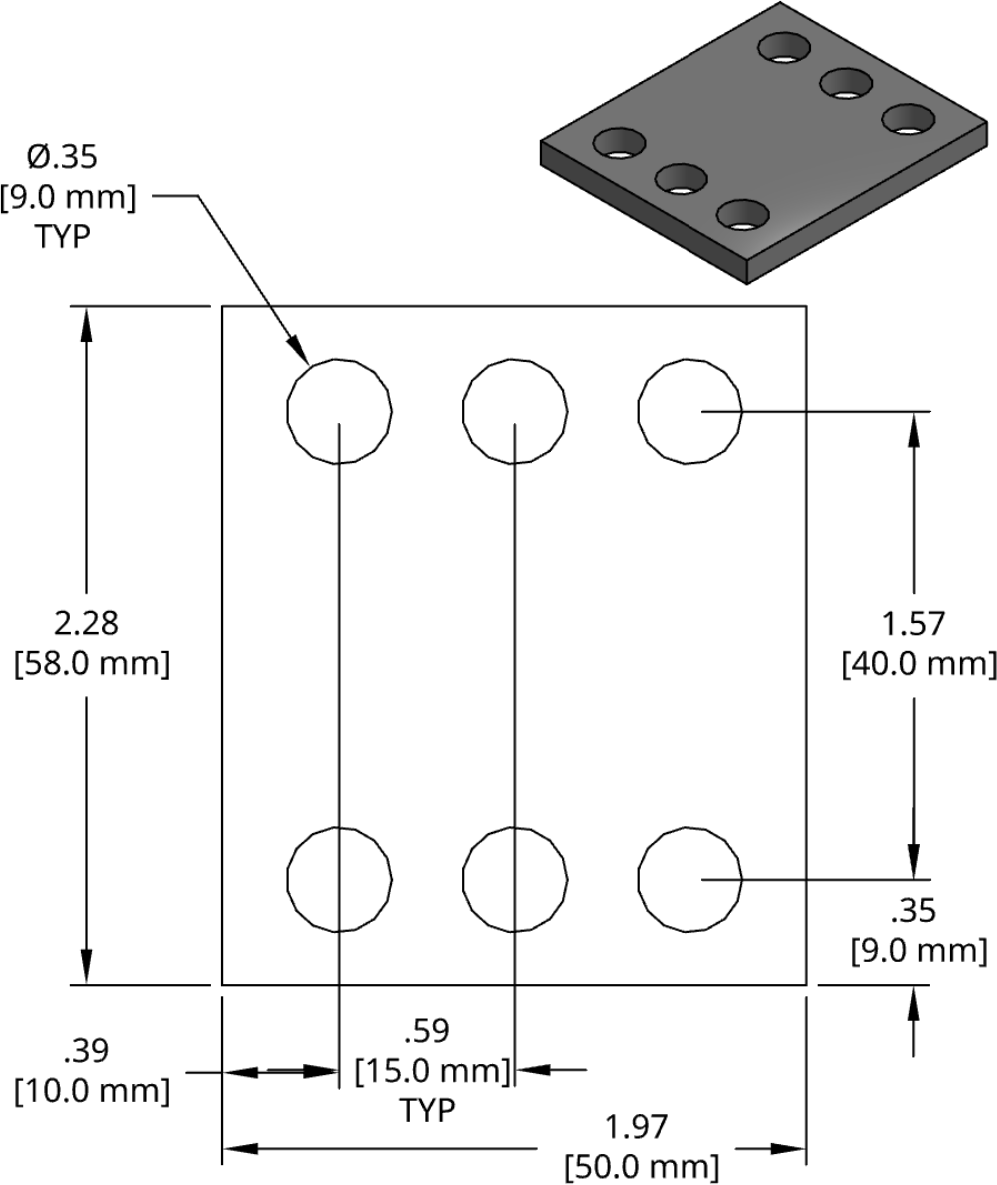

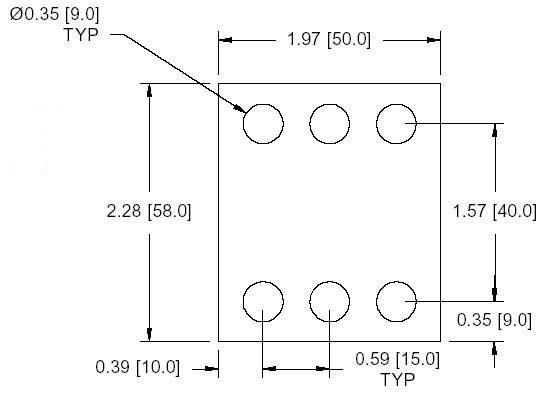

DSCP038 Series Shim Drawing


View PDF Catalog Page

DSCP038 Series Individual Spacers

Part Number Thickness Other Part Numbers
DSCP038-M025 0.25mm
DSCP038-M050 0.50mm
DSCP038-M100 1.00mm
DSCP038-M200 2.00mm
DSCP038-M300 3.00mm ASP630N
DSCP038-M320 3.20mm ASP632N
DSCP038-M340 3.40mm ASP634N
DSCP038-M360 3.60mm ASP636N
DSCP038-M380 3.80mm ASP638N
DSCP038-M400 4.00mm ASP640N
DSCP038-M420 4.20mm ASP642N
DSCP038-M440 4.40mm ASP644N
DSCP038-M460 4.60mm ASP646N
DSCP038-M480 4.80mm ASP648N
DSCP038-M500 5.00mm ASP650N
DSCP038-M520 5.20mm ASP652N
DSCP038-M540 5.40mm ASP654N
DSCP038-M560 5.60mm ASP656N
DSCP038-M580 5.80mm ASP658N
DSCP038-M600 6.00mm ASP660N
DSCP038-M620 6.20mm ASP662N
DSCP038-M640 6.40mm ASP664N
DSCP038-M660 6.60mm ASP666N
DSCP038-M680 6.80mm ASP668N
DSCP038-M700 7.00mm ASP670N
