DSCP042 Series Spacers

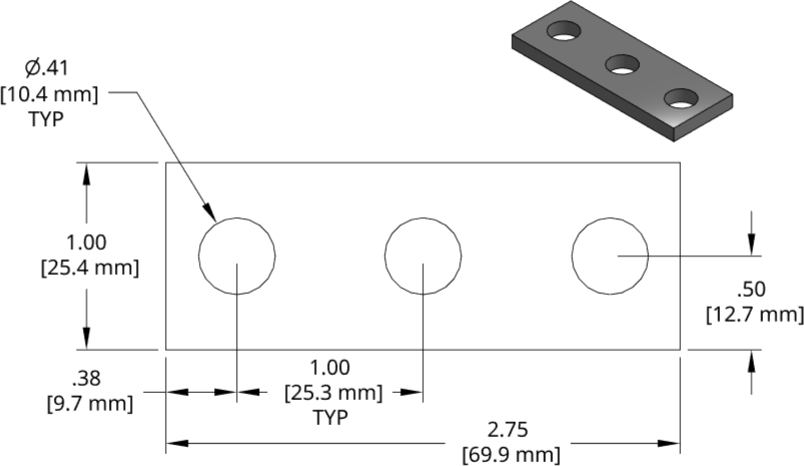

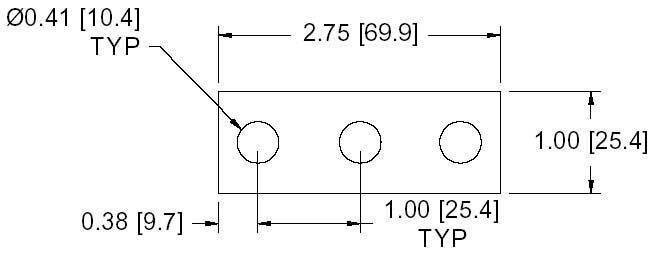

DSCP042 Series Shim Drawing


View PDF Catalog Page

DSCP042 Series Individual Spacers

Part Number Thickness Other Part Numbers
DSCP042-M400 4.00mm 56ZF28050-01
DSCP042-M425 4.25mm 56ZF28050-02
DSCP042-M450 4.50mm 56ZF28050-03
DSCP042-M475 4.75mm 56ZF28050-04
DSCP042-M500 5.00mm 56ZF28050-05
DSCP042-M525 5.25mm 56ZF28050-06
DSCP042-M550 5.50mm 56ZF28050-07
DSCP042-M575 5.75mm 56ZF28050-08
DSCP042-M600 6.00mm 56ZF28050-09
DSCP042-M625 6.25mm 56ZF28050-10
DSCP042-M650 6.50mm 56ZF28050-11
DSCP042-M675 6.75mm 56ZF28050-12
DSCP042-M700 7.00mm 56ZF28050-13
DSCP042-M725 7.25mm 56ZF28050-14
DSCP042-M750 7.50mm 56ZF28050-15
DSCP042-M775 7.75mm 56ZF28050-16
DSCP042-M800 8.00mm 56ZF28050-17
