DSCP049 Series Spacers

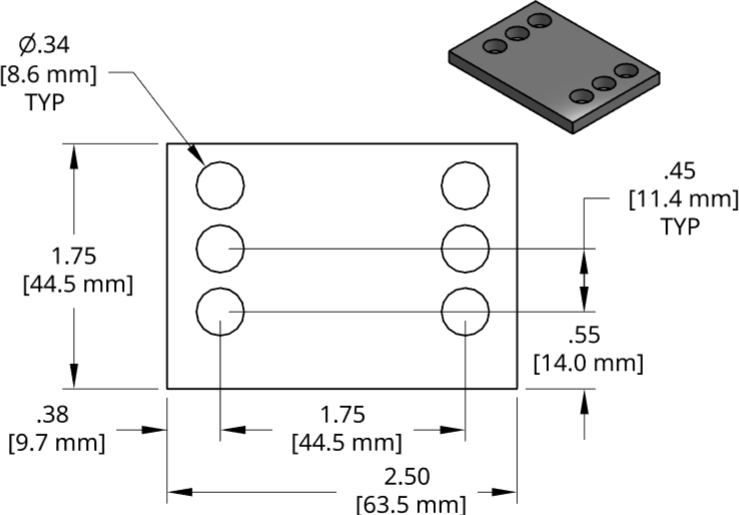

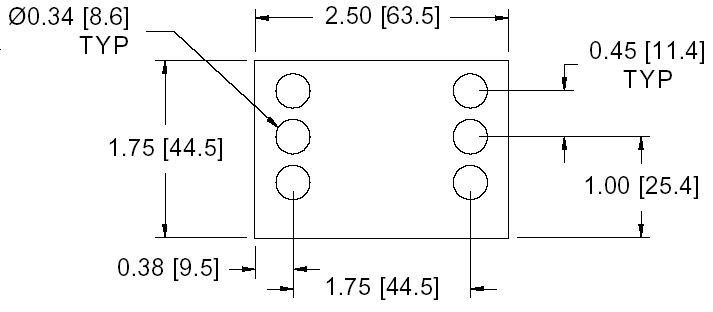

DSCP049 Series Shim Drawing


View PDF Catalog Page

DSCP049 Series Individual Spacers

Part Number Thickness Other Part Numbers
DSCP049-M400 4.00mm 56ZF27465-01
DSCP049-M425 4.25mm 56ZF27465-02
DSCP049-M450 4.50mm 56ZF27465-03
DSCP049-M475 4.75mm 56ZF27465-04
DSCP049-M500 5.00mm 56ZF27465-05
DSCP049-M525 5.25mm 56ZF27465-06
DSCP049-M550 5.50mm 56ZF27465-07
DSCP049-M575 5.75mm 56ZF27465-08
DSCP049-M600 6.00mm 56ZF27465-09
DSCP049-M625 6.25mm 56ZF27465-10
DSCP049-M650 6.50mm 56ZF27465-11
DSCP049-M675 6.75mm 56ZF27465-12
DSCP049-M700 7.00mm 56ZF27465-13
DSCP049-M725 7.25mm 56ZF27465-14
DSCP049-M750 7.50mm 56ZF27465-15
DSCP049-M775 7.75mm 56ZF27465-16
DSCP049-M800 8.00mm 56ZF27465-17
