DSCH043 Series Shims

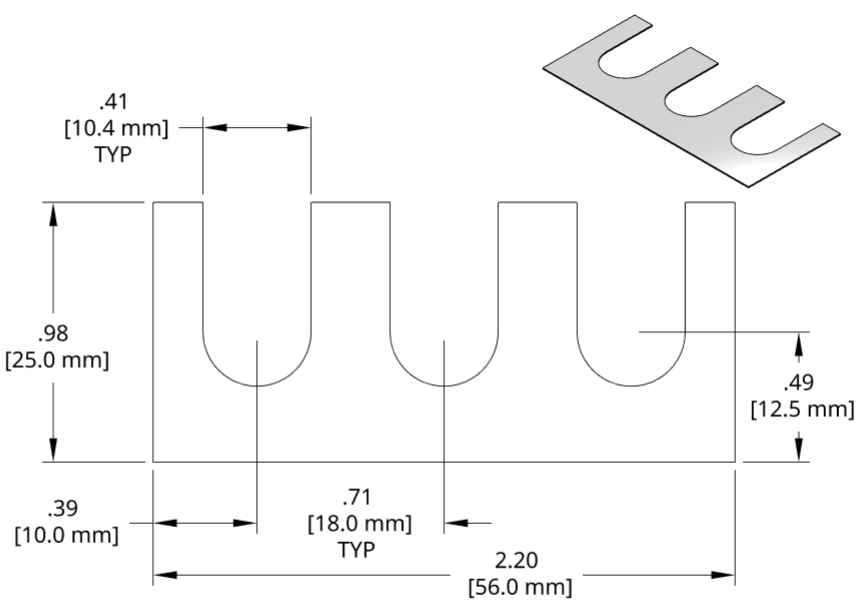

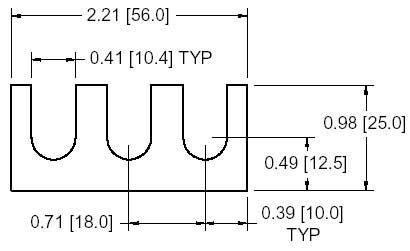

DSCH043 Series Shim Drawing


View PDF Catalog Page

DSCH043 Series Individual Shims

Stock Code Thickness Legacy Stock Codes STEP Download
DSCH043-M025 0.25mm 56ZF28686-0 DSCH043-M025.step
DSCH043-M050 0.50mm 56ZF28686-1 DSCH043-M050.step
DSCH043-M100 1.00mm 56ZF28686-2 DSCH043-M100.step
DSCH043-M200 2.00mm 56ZF28686-3 DSCH043-M200.step
DSCH043-E015 .015 inch DSCH043-E015.step
DSCH043-E032 .032 inch DSCH043-E032.step
DSCH043-E062 .062 inch DSCH043-E062.step

DSCH043 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH043-M305 3.0mm Set 0 2 1 2
DSCH043-M454 4.5mm Set 1 2 1 0
DSCH043-M505 5.0mm Set 1 2 2 0
DSCH043-M506 5.0mm Set 1 2 1 2
DSCH043-M507 5.0mm Set 1 1 3 2
DSCH043-M605 6.0mm Set 2 1 2 0
DSCH043-M706 7.0mm Set 2 2 2 0

DSCH043 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch
DSCH043-E255 .250 inch Set 3 2
