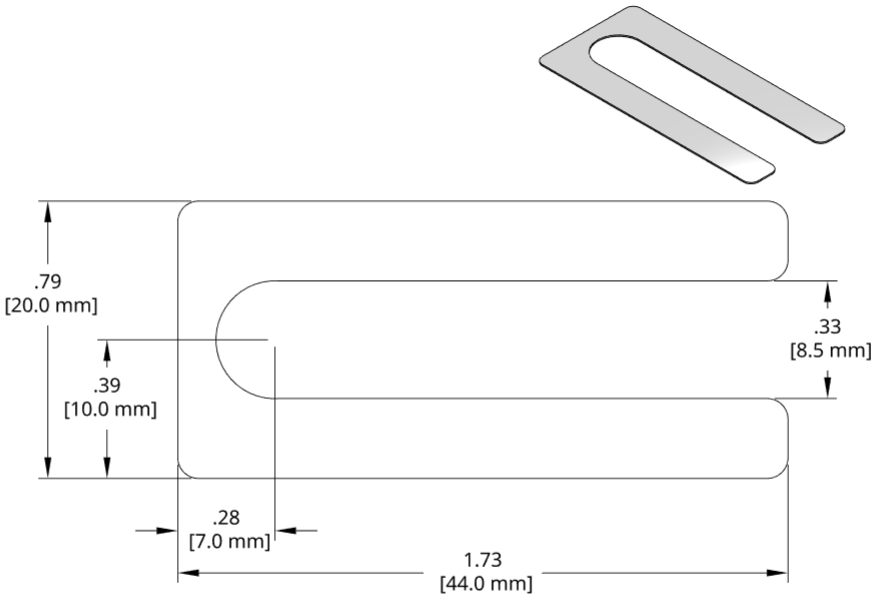

DSCH049 Series Shims
View PDF Catalog Page
DSCH049 Series Individual Shims
| Stock Code | Thickness | Legacy Stock Codes | STEP Download |
|---|---|---|---|
| DSCH049-M025 | 0.25mm | DSC402S, ASH102N | DSCH049-M025.step |
| DSCH049-M050 | 0.50mm | DSC405S, ASH105N | DSCH049-M050.step |
| DSCH049-M100 | 1.00mm | DSC410S, ASH110N | DSCH049-M100.step |
| DSCH049-M200 | 2.00mm | DSC420S, ASH120N | DSCH049-M200.step |
| DSCH049-E015 | .015 inch | DSCH049-E015.step | |
| DSCH049-E032 | .032 inch | DSCH049-E032.step | |
| DSCH049-E062 | .062 inch | DSCH049-E062.step |
DSCH049 Series Shim Set Stackups
| Set Number | Stackup | 2.00mm | 1.00mm | 0.50mm | 0.25mm |
|---|---|---|---|---|---|
| DSCH049-M305 | 3.0mm Set | 0 | 2 | 1 | 2 |
| DSCH049-M454 | 4.5mm Set | 1 | 2 | 1 | 0 |
| DSCH049-M505 | 5.0mm Set | 1 | 2 | 2 | 0 |
| DSCH049-M506 | 5.0mm Set | 1 | 2 | 1 | 2 |
| DSCH049-M507 | 5.0mm Set | 1 | 1 | 3 | 2 |
| DSCH049-M605 | 6.0mm Set | 2 | 1 | 2 | 0 |
| DSCH049-M706 | 7.0mm Set | 2 | 2 | 2 | 0 |
DSCH049 Inch Shim Set Stackups
| Set Number | Stackup | .062 inch | .031 inch |
|---|---|---|---|
| DSCH049-E255 | .250 inch Set | 3 | 2 |
