DSCH083 Series Shims

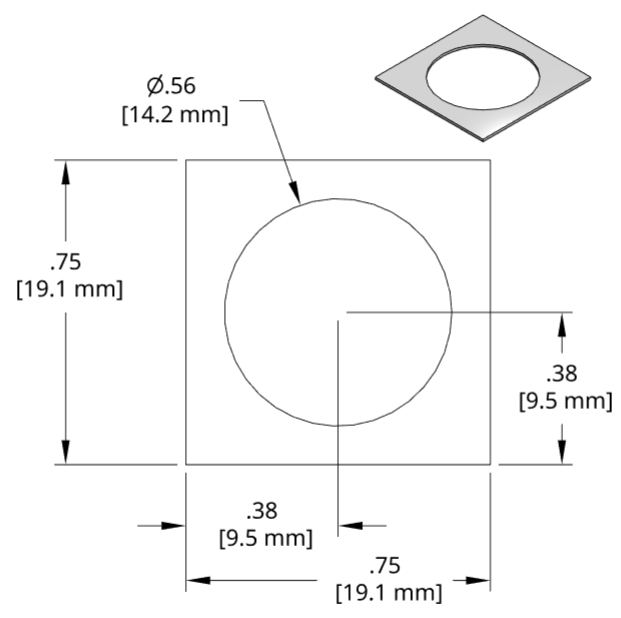

DSCH083 Series Shim Drawing


View PDF Catalog Page

DSCH083 Series Individual Shims

Stock Code Thickness Legacy Stock Codes STEP Download
DSCH083-M025 0.25mm DSCH083-M025.step
DSCH083-M050 0.50mm DSCH083-M050.step
DSCH083-M100 1.00mm DSCH083-M100.step
DSCH083-M200 2.00mm DSCH083-M200.step
DSCH083-E015 .015 inch CSS 33-3 DSCH083-E015.step
DSCH083-E032 .031 inch CSS 33-1 DSCH083-E032.step
DSCH083-E062 .062 inch CSS 33-2 DSCH083-E062.step

DSCH083 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH083-M305 3.0mm Set 0 2 1 2
DSCH083-M454 4.5mm Set 1 2 1 0
DSCH083-M505 5.0mm Set 1 2 2 0
DSCH083-M506 5.0mm Set 1 2 1 2
DSCH083-M507 5.0mm Set 1 1 3 2
DSCH083-M605 6.0mm Set 2 1 2 0
DSCH083-M706 7.0mm Set 2 2 2 0

DSCH083 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch .015 inch
DSCH083-E155 .150 inch set 1 2 2
