DSCH099 Series Shims

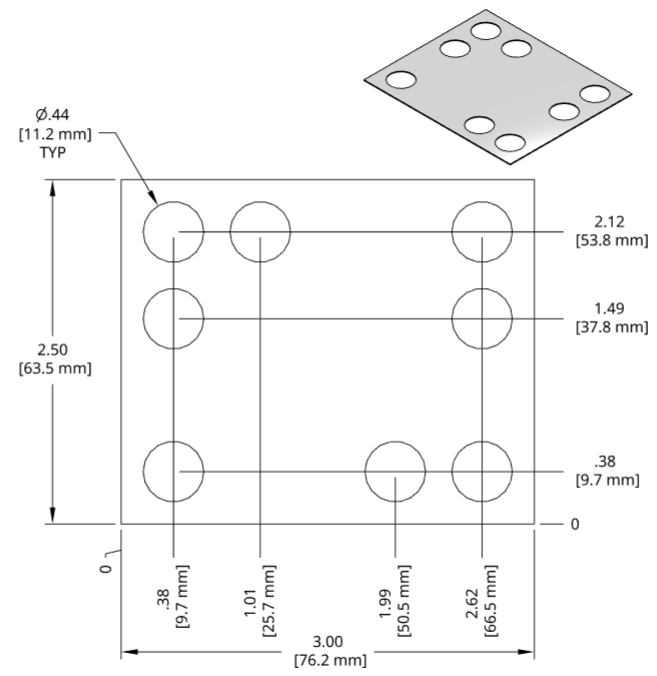

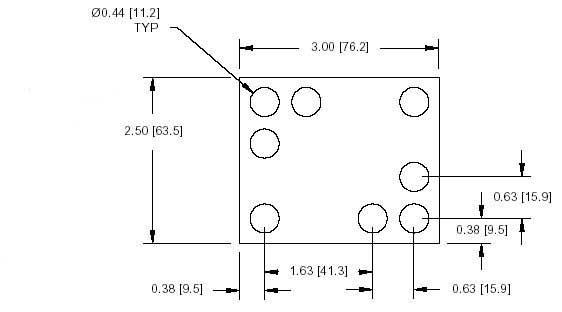

DSCH099 Series Shim Drawing


View PDF Catalog Page

DSCH099 Series Individual Shims

Part Number Thickness Legacy Part No's
DSCH099-E015 .015 inch CSS 1012-3
DSCH099-E032 .031 inch CSS 1012-1
DSCH099-E062 .062 inch CSS 1012-2

DSCH099 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch .015 inch
DSCH099-E155 .150 inch set 1 2 2
