DSCP053 Series Spacers

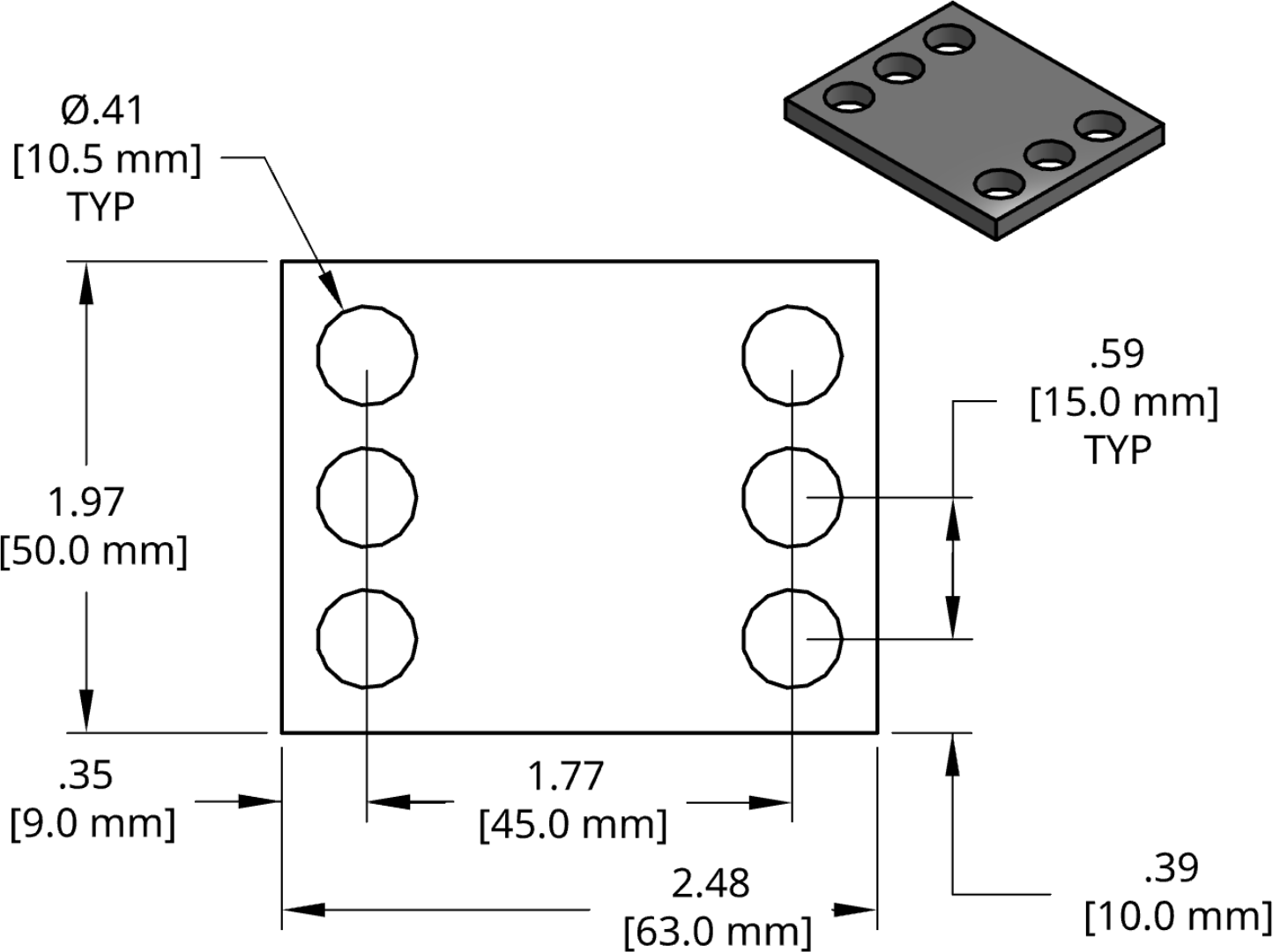

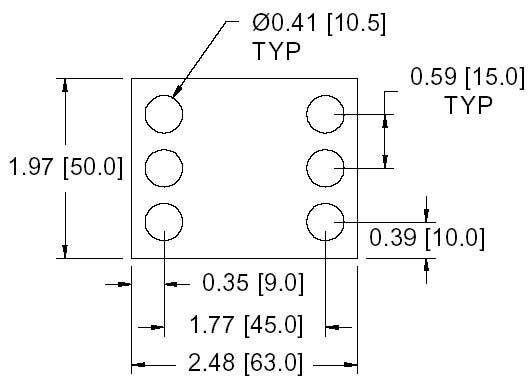

DSCP053 Series Shim Drawing


View PDF Catalog Page

DSCP053 Series Individual Spacers

Part Number Thickness Other Part Numbers STEP Download
DSCP053-M025 0.25mm ASP602 DSCP053-M025.step
DSCP053-M050 0.50mm ASP605 DSCP053-M050.step
DSCP053-M100 1.00mm ASP610 DSCP053-M100.step
DSCP053-M200 2.00mm ASP620 DSCP053-M200.step
DSCP053-M300 3.00mm ASP630, FSD 41296-51, SP3-30, 41-502-2242, 56ZF28066-101 DSCP053-M300.step
DSCP053-M320 3.20mm ASP632, FSD 41296-52, SP3-32, 41-502-2243, 56ZF28066-102 DSCP053-M320.step
DSCP053-M340 3.40mm ASP634, FSD 41296-53, SP3-34, 41-502-2244, 56ZF28066-103 DSCP053-M340.step
DSCP053-M360 3.60mm ASP636, FSD 41296-54, SP3-36, 41-502-2245, 56ZF28066-104 DSCP053-M360.step
DSCP053-M380 3.80mm ASP638, FSD 41296-55, SP3-38, 41-502-2246, 56ZF28066-105 DSCP053-M380.step
DSCP053-M400 4.00mm ASP640, FSD 41296-56, SP3-40, 41-502-2247, 56ZF28066-106 DSCP053-M400.step
DSCP053-M420 4.20mm ASP642, FSD 41296-57, SP3-42, 41-502-2248, 56ZF28066-107 DSCP053-M420.step
DSCP053-M440 4.40mm ASP644, FSD 41296-58, SP3-44, 41-502-2249, 56ZF28066-108 DSCP053-M440.step
DSCP053-M460 4.60mm ASP646, FSD 41296-59, SP3-46, 41-502-2250, 56ZF28066-109 DSCP053-M460.step
DSCP053-M480 4.80mm ASP648, FSD 41296-60, SP3-48, 41-502-2251, 56ZF28066-110 DSCP053-M480.step
DSCP053-M500 5.00mm ASP650, FSD 41296-61, SP3-50, 41-502-2252, 56ZF28066-111 DSCP053-M500.step
DSCP053-M520 5.20mm ASP652, FSD 41296-62, SP3-52, 41-502-2253, 56ZF28066-112 DSCP053-M520.step
DSCP053-M540 5.40mm ASP654, FSD 41296-63, SP3-54, 41-502-2254, 56ZF28066-113 DSCP053-M540.step
DSCP053-M560 5.60mm ASP656, FSD 41296-64, SP3-56, 41-502-2255, 56ZF28066-114 DSCP053-M560.step
DSCP053-M580 5.80mm ASP658, FSD 41296-65, SP3-58, 41-502-2256, 56ZF28066-115 DSCP053-M580.step
DSCP053-M600 6.00mm ASP660, FSD 41296-66, SP3-60, 41-502-2257, 56ZF28066-116 DSCP053-M600.step
DSCP053-M620 6.20mm ASP662, FSD 41296-67, SP3-62, 41-502-2258, 56ZF28066-117 DSCP053-M620.step
DSCP053-M640 6.40mm ASP664, FSD 41296-68, SP3-64, 41-502-2259, 56ZF28066-118 DSCP053-M640.step
DSCP053-M660 6.60mm ASP666, FSD 41296-69, SP3-66, 41-502-2260, 56ZF28066-119 DSCP053-M660.step
DSCP053-M680 6.80mm ASP668, FSD 41296-70, SP3-68, 41-502-2261, 56ZF28066-120 DSCP053-M680.step
DSCP053-M700 7.00mm ASP670, FSD 41296-71, SP3-70, 41-502-2262, 56ZF28066-121 DSCP053-M700.step
