DSCP094 Series Spacers

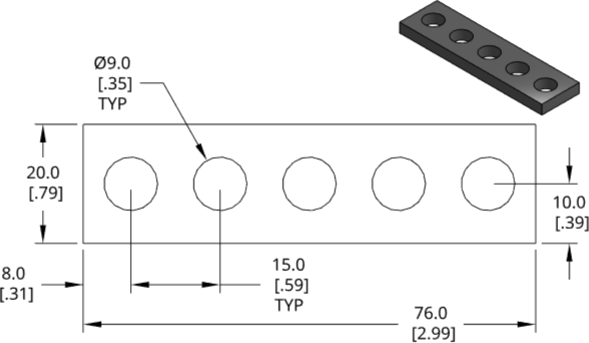

DSCP094 Series Shim Drawing


View PDF Catalog Page

DSCP094 Series Individual Spacers

Part Number Thickness Other Part Numbers
DSCP094-M025 0.25mm ASP502N
DSCP094-M050 0.50mm ASP505N
DSCP094-M100 1.00mm ASP510N
DSCP094-M200 2.00mm ASP520N
DSCP094-M300 3.00mm ASP530N
DSCP094-M320 3.20mm ASP532N
DSCP094-M340 3.40mm ASP534N
DSCP094-M360 3.60mm ASP536N
DSCP094-M380 3.80mm ASP538N
DSCP094-M400 4.00mm ASP540N
DSCP094-M420 4.20mm ASP542N
DSCP094-M440 4.40mm ASP544N
DSCP094-M460 4.60mm ASP546N
DSCP094-M480 4.80mm ASP548N
DSCP094-M500 5.00mm ASP550N
DSCP094-M520 5.20mm ASP552N
DSCP094-M540 5.40mm ASP554N
DSCP094-M560 5.60mm ASP556N
DSCP094-M580 5.80mm ASP558N
DSCP094-M600 6.00mm ASP560N
DSCP094-M620 6.20mm ASP562N
DSCP094-M640 6.40mm ASP564N
DSCP094-M660 6.60mm ASP566N
DSCP094-M680 6.80mm ASP568N
DSCP094-M700 7.00mm ASP570N
