FSD Metric Weld Washers

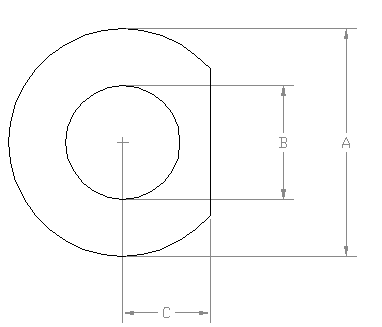

DSC Metric Weld Washer Drawing
View PDF Catalog Page

Part Number	A Dim. (O.D.)	B Dim. (I.D.)	C Dim. (center to flat)	Thickness	Material
FSD 41341	0.75 inch	6.40mm	6.35mm	3.00mm	CRS
FSD 41342	0.88 inch	8.10mm	8.00mm	3.00mm	CRS
FSD 41343	1.00 inch	10.10mm	10.00mm	3.00mm	CRS
FSD 41344	1.25	12.10mm	12.00mm	4.00mm	CRS
